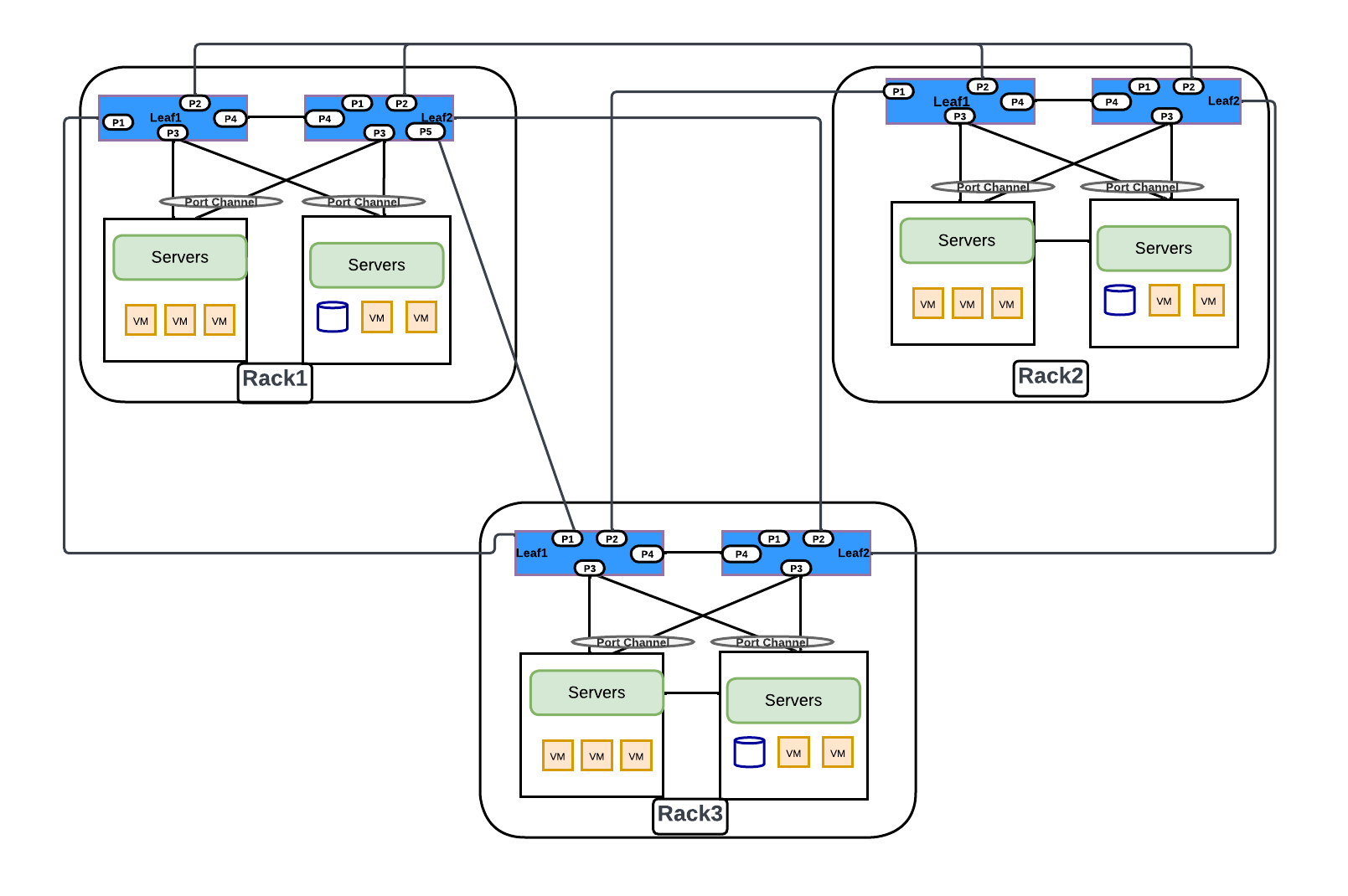

Rack-2-Rack Deployment
A deployment scenario customized for fabrics engineered to interconnect leaf devices solely through Layer 2 port channels between leaves, obviating the requirement for spines. Rack-to-rack deployment facilitates seamless scalability, enabling the addition of extra racks to support the growing demand for computing resources. This modular approach empowers data centers to expand their capacity efficiently and in an organized manner, responding flexibly to increasing demands for computing
YAML Template
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine: []
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "x.x.x.13"
ASN: 1001
Credentials:
user: "admin"
password: "YourPaSsWoRd"
mclag:
enabled: true
peer: "L2"
keepalive_vlan: 10
Links:
- link: "L1_Ethernet48 | L5_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | L6_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet56 | L2_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L1_Ethernet45 | L3_Ethernet45"
staticLink: true
properties:
- link: "L1_Ethernet46 | L4_Ethernet45"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Access"
vlan: 201
mc_po_group: 201
- link: "L1_Ethernet4 | H2_Ethernet0"
staticLink: true
properties:
mode: "L2-Access"
vlan: 202
mc_po_group: 202
- switchId: 2
switchName: "Leaf-2"
ipAddress: "x.x.x.14"
ASN: 1002
Credentials:
user: "admin"
password: "YourPaSsWoRd"
mclag:
enabled: true
peer: "L1"
keepalive_vlan: 10
Links:
- link: "L2_Ethernet48 | L5_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | L6_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet56 | L1_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L2_Ethernet45 | L3_Ethernet46"
staticLink: true
properties:
- link: "L2_Ethernet46 | L4_Ethernet46"
staticLink: true
properties:
- link: "L2_Ethernet0 | H1_Ethernet1"
staticLink: true
properties:
mode: "L2-Access"
vlan: 201
mc_po_group: 201
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Access"
vlan: 202
mc_po_group: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "x.x.x.15"
ASN: 1003
Credentials:
user: "admin"
password: "YourPaSsWoRd"
mclag:
enabled: true
peer: "L4"
keepalive_vlan: 10
Links:
- link: "L3_Ethernet48 | L5_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | L6_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet56 | L4_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L3_Ethernet45 | L1_Ethernet45"
staticLink: true
properties:
- link: "L3_Ethernet46 | L2_Ethernet45"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Access"
vlan: 203
mc_po_group: 203
- link: "L3_Ethernet4 | H4_Ethernet0"
staticLink: true
properties:
mode: "L2-Access"
vlan: 204
mc_po_group: 204
- switchId: 4
switchName: "Leaf-4"
ipAddress: "x.x.x.16"
ASN: 1004
Credentials:
user: "admin"
password: "YourPaSsWoRd"
mclag:
enabled: true
peer: "L3"
keepalive_vlan: 10
Links:
- link: "L4_Ethernet48 | L5_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | L6_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet56 | L3_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L4_Ethernet45 | L1_Ethernet46"
staticLink: true
properties:
- link: "L4_Ethernet46 | L2_Ethernet46"
staticLink: true
properties:
- link: "L4_Ethernet0 | H3_Ethernet1"
staticLink: true
properties:
mode: "L2-Access"
vlan: 203
mc_po_group: 203
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Access"
vlan: 204
mc_po_group: 204
- switchId: 5
switchName: "Leaf-5-Spine-1"
ipAddress: "x.x.x.11"
ASN: 1005
Credentials:
user: "admin"
password: "YourPaSsWoRd"
mclag:
enabled: true
peer: "L6"
keepalive_vlan: 10
Links:
- link: "L5_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "L5_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "L5_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "L5_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- link: "L5_Ethernet124 | L6_Ethernet124"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- switchId: 6
switchName: "Leaf-6-Spine-2"
ipAddress: "x.x.x.12"
ASN: 1006
Credentials:
user: "admin"
password: "YourPaSsWoRd"
mclag:
enabled: true
peer: "L5"
keepalive_vlan: 10
Links:
- link: "L6_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "L6_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "L6_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "L6_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
- link: "L6_Ethernet124 | L5_Ethernet124"
staticLink: true
properties:
mode: "MC-LAG-BGP"
Tor: []
BGP:
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
NTP:
server: "x.x.x.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "x.x.x.10"
SNMP:
trapserver: "x.x.x.10"
Parameters:
vlan: "201,202,203,204,205,206,207,208"
anycast_gateway: "x.x.x.0/23"
hosts_per_vlan: 10
L2LS:
enabled: false
mode: "L2" # OverL2 and OverL3
vlan: "201,202,203,204,205,206,207,208"
Configure, Validate & Verify through UI
Applied Configuration on Switches
router-id 10.10.10.1
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.1
!
vlan 10
!
vlan 201
!
vlan 202
!
interface port-channel 201
mtu 9000
switchport access vlan 201
!
interface port-channel 202
mtu 9000
switchport access vlan 202
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 201 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 202 mode active
forward-error-correction none
!
interface ethernet Ethernet45
no shutdown
mtu 9000
ip address 40.0.0.6/31
forward-error-correction none
!
interface ethernet Ethernet46
no shutdown
mtu 9000
ip address 40.0.0.8/31
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
ip address 40.0.0.0/31
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
ip address 40.0.0.2/31
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.0/31
!
interface vlan 201
ip address x.x.x.1/25
!
interface vlan 202
ip address x.x.x.129/25
!
interface loopback 1
ip address 10.10.10.1/32
!
router bgp 1001
neighbor 192.168.0.1 remote-as 1002
neighbor 40.0.0.1 remote-as 1005
neighbor 40.0.0.3 remote-as 1006
neighbor 40.0.0.7 remote-as 1003
neighbor 40.0.0.9 remote-as 1004
neighbor 192.168.0.1 capability extended-nexthop
neighbor 40.0.0.1 capability extended-nexthop
neighbor 40.0.0.3 capability extended-nexthop
neighbor 40.0.0.7 capability extended-nexthop
neighbor 40.0.0.9 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 192.168.0.1 allowas-in 1
neighbor 40.0.0.1 allowas-in 1
neighbor 40.0.0.3 allowas-in 1
neighbor 40.0.0.7 allowas-in 1
neighbor 40.0.0.9 allowas-in 1
network 40.0.0.0/31
network 40.0.0.2/31
network 40.0.0.6/31
network 40.0.0.8/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
!
mlag domain-id 1
peer-address 192.168.0.1
peer-link port-channel 999
src-address 192.168.0.0
member port-channel 201
member port-channel 202
local-interface vlan 10
router-id 10.10.10.2
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.2
!
vlan 10
!
vlan 201
!
vlan 202
!
interface port-channel 201
mtu 9000
switchport access vlan 201
!
interface port-channel 202
mtu 9000
switchport access vlan 202
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 201 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 202 mode active
forward-error-correction none
!
interface ethernet Ethernet45
no shutdown
mtu 9000
ip address 40.0.0.16/31
forward-error-correction none
!
interface ethernet Ethernet46
no shutdown
mtu 9000
ip address 40.0.0.18/31
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
ip address 40.0.0.10/31
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
ip address 40.0.0.12/31
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.1/31
!
interface vlan 201
ip address x.x.x.1/25
!
interface vlan 202
ip address x.x.x.129/25
!
interface loopback 1
ip address 10.10.10.2/32
!
router bgp 1002
neighbor 192.168.0.0 remote-as 1001
neighbor 40.0.0.11 remote-as 1005
neighbor 40.0.0.13 remote-as 1006
neighbor 40.0.0.17 remote-as 1003
neighbor 40.0.0.19 remote-as 1004
neighbor 192.168.0.0 capability extended-nexthop
neighbor 40.0.0.11 capability extended-nexthop
neighbor 40.0.0.13 capability extended-nexthop
neighbor 40.0.0.17 capability extended-nexthop
neighbor 40.0.0.19 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 192.168.0.0 allowas-in 1
neighbor 40.0.0.11 allowas-in 1
neighbor 40.0.0.13 allowas-in 1
neighbor 40.0.0.17 allowas-in 1
neighbor 40.0.0.19 allowas-in 1
network 40.0.0.10/31
network 40.0.0.12/31
network 40.0.0.16/31
network 40.0.0.18/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
!
mlag domain-id 1
peer-address 192.168.0.0
peer-link port-channel 999
src-address 192.168.0.1
member port-channel 201
member port-channel 202
local-interface vlan 10
router-id 10.10.10.4
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-3
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.4
!
vlan 10
!
vlan 203
!
vlan 204
!
interface port-channel 203
mtu 9000
switchport access vlan 203
!
interface port-channel 204
mtu 9000
switchport access vlan 204
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 203 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 204 mode active
forward-error-correction none
!
interface ethernet Ethernet45
no shutdown
mtu 9000
ip address 40.0.0.7/31
forward-error-correction none
!
interface ethernet Ethernet46
no shutdown
mtu 9000
ip address 40.0.0.17/31
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
ip address 40.0.0.20/31
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
ip address 40.0.0.22/31
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.2/31
!
interface vlan 203
ip address 100.10.1.1/25
!
interface vlan 204
ip address 100.10.1.129/25
!
interface loopback 1
ip address 10.10.10.4/32
!
router bgp 1003
neighbor 192.168.0.3 remote-as 1004
neighbor 40.0.0.16 remote-as 1002
neighbor 40.0.0.21 remote-as 1005
neighbor 40.0.0.23 remote-as 1006
neighbor 40.0.0.6 remote-as 1001
neighbor 192.168.0.3 capability extended-nexthop
neighbor 40.0.0.16 capability extended-nexthop
neighbor 40.0.0.21 capability extended-nexthop
neighbor 40.0.0.23 capability extended-nexthop
neighbor 40.0.0.6 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 192.168.0.3 allowas-in 1
neighbor 40.0.0.16 allowas-in 1
neighbor 40.0.0.21 allowas-in 1
neighbor 40.0.0.23 allowas-in 1
neighbor 40.0.0.6 allowas-in 1
network 40.0.0.16/31
network 40.0.0.20/31
network 40.0.0.22/31
network 40.0.0.6/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
!
mlag domain-id 1
peer-address 192.168.0.3
peer-link port-channel 999
src-address 192.168.0.2
member port-channel 203
member port-channel 204
local-interface vlan 10
router-id 10.10.10.5
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-4
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.5
!
vlan 10
!
vlan 203
!
vlan 204
!
interface port-channel 203
mtu 9000
switchport access vlan 203
!
interface port-channel 204
mtu 9000
switchport access vlan 204
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 203 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 204 mode active
forward-error-correction none
!
interface ethernet Ethernet45
no shutdown
mtu 9000
ip address 40.0.0.9/31
forward-error-correction none
!
interface ethernet Ethernet46
no shutdown
mtu 9000
ip address 40.0.0.19/31
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
ip address 40.0.0.26/31
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
ip address 40.0.0.28/31
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.3/31
!
interface vlan 203
ip address 100.10.1.1/25
!
interface vlan 204
ip address 100.10.1.129/25
!
interface loopback 1
ip address 10.10.10.5/32
!
router bgp 1004
neighbor 192.168.0.2 remote-as 1003
neighbor 40.0.0.18 remote-as 1002
neighbor 40.0.0.27 remote-as 1005
neighbor 40.0.0.29 remote-as 1006
neighbor 40.0.0.8 remote-as 1001
neighbor 192.168.0.2 capability extended-nexthop
neighbor 40.0.0.18 capability extended-nexthop
neighbor 40.0.0.27 capability extended-nexthop
neighbor 40.0.0.29 capability extended-nexthop
neighbor 40.0.0.8 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 192.168.0.2 allowas-in 1
neighbor 40.0.0.18 allowas-in 1
neighbor 40.0.0.27 allowas-in 1
neighbor 40.0.0.29 allowas-in 1
neighbor 40.0.0.8 allowas-in 1
network 40.0.0.18/31
network 40.0.0.26/31
network 40.0.0.28/31
network 40.0.0.8/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
!
mlag domain-id 1
peer-address 192.168.0.2
peer-link port-channel 999
src-address 192.168.0.3
member port-channel 203
member port-channel 204
local-interface vlan 10
router-id 10.10.10.7
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-5-Spine-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.7
!
vlan 10
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
!
interface ethernet Ethernet0
no shutdown
mtu 9000
ip address 40.0.0.1/31
forward-error-correction none
!
interface ethernet Ethernet12
no shutdown
mtu 9000
ip address 40.0.0.27/31
forward-error-correction none
!
interface ethernet Ethernet124
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
ip address 40.0.0.11/31
forward-error-correction none
!
interface ethernet Ethernet8
no shutdown
mtu 9000
ip address 40.0.0.21/31
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.4/31
!
interface loopback 1
ip address 10.10.10.7/32
!
router bgp 1005
neighbor 192.168.0.5 remote-as 1006
neighbor 40.0.0.0 remote-as 1001
neighbor 40.0.0.10 remote-as 1002
neighbor 40.0.0.20 remote-as 1003
neighbor 40.0.0.26 remote-as 1004
neighbor 192.168.0.5 capability extended-nexthop
neighbor 40.0.0.0 capability extended-nexthop
neighbor 40.0.0.10 capability extended-nexthop
neighbor 40.0.0.20 capability extended-nexthop
neighbor 40.0.0.26 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 192.168.0.5 allowas-in 1
neighbor 40.0.0.0 allowas-in 1
neighbor 40.0.0.10 allowas-in 1
neighbor 40.0.0.20 allowas-in 1
neighbor 40.0.0.26 allowas-in 1
network 40.0.0.0/31
network 40.0.0.10/31
network 40.0.0.20/31
network 40.0.0.26/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
!
mlag domain-id 1
peer-address 192.168.0.5
peer-link port-channel 999
src-address 192.168.0.4
local-interface vlan 10
router-id 10.10.10.8
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-6-Spine-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.8
!
vlan 10
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
!
interface ethernet Ethernet0
no shutdown
mtu 9000
ip address 40.0.0.3/31
forward-error-correction none
!
interface ethernet Ethernet12
no shutdown
mtu 9000
ip address 40.0.0.29/31
forward-error-correction none
!
interface ethernet Ethernet124
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
ip address 40.0.0.13/31
forward-error-correction none
!
interface ethernet Ethernet8
no shutdown
mtu 9000
ip address 40.0.0.23/31
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.5/31
!
interface loopback 1
ip address 10.10.10.8/32
!
router bgp 1006
neighbor 192.168.0.4 remote-as 1005
neighbor 40.0.0.12 remote-as 1002
neighbor 40.0.0.2 remote-as 1001
neighbor 40.0.0.22 remote-as 1003
neighbor 40.0.0.28 remote-as 1004
neighbor 192.168.0.4 capability extended-nexthop
neighbor 40.0.0.12 capability extended-nexthop
neighbor 40.0.0.2 capability extended-nexthop
neighbor 40.0.0.22 capability extended-nexthop
neighbor 40.0.0.28 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 192.168.0.4 allowas-in 1
neighbor 40.0.0.12 allowas-in 1
neighbor 40.0.0.2 allowas-in 1
neighbor 40.0.0.22 allowas-in 1
neighbor 40.0.0.28 allowas-in 1
network 40.0.0.12/31
network 40.0.0.2/31
network 40.0.0.22/31
network 40.0.0.28/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
!
mlag domain-id 1
peer-address 192.168.0.4
peer-link port-channel 999
src-address 192.168.0.5
local-interface vlan 10
