NCP LogLens — Syslog Event Intelligence & Natural-Language Q&A

GitHub

Track: AI Agents for Network Operations (Automation / Observability)

LogLens turns natural-language questions into Splunk SPL queries, executes them, and interprets the results as actionable summaries — no SPL expertise required.

What It Does

Syslog / Device Events

You ask LogLens returns
"Show BGP flap events in the last 24h by peer and VRF" Table: device, peer IP, VRF, flap count, time range
"List authentication failures by username and device, past 6 hours" Table: device, username, failure count, first/last hit
"For leaf1, summarize interface events and BGP changes in the last 2h" Timeline + narrative for leaf1
"Explain repeated 'protocol identification string lack carriage return'" Count by device + pattern explanation
"Give me a timeline of PSU and FAN events for Cisco-ONES on 2025-05-12" Chronological event list with severities

Supported syslog categories: BGP_FLAP · AUTH_FAILURE · IF_UP_DOWN · PSU_EVENT · FAN_EVENT · OSPF_EVENT · GENERIC_ERROR

Flow Telemetry (sFlow / NetFlow / IPFIX)

You ask LogLens returns
"Show top 10 source IPs by bytes in the last 24 hours" Table: src IP, total bytes, flow count
"What protocols are generating the most traffic this week?" Protocol distribution table with bytes and flow counts
"Show all flows to or from 10.0.0.5 in the past hour" Table: src, dst, protocol, bytes per flow
"Top source-destination pairs by flow count today" Ranked pairs table with bytes and counts
"Traffic volume trend over the last 7 days" Hourly/daily bytes and flow count over time

Supported flow categories: TOP_TALKERS · FLOW_PAIRS · PROTOCOL_DIST · TRAFFIC_TREND · IP_FLOWS

Architecture

             ┌───────────────────────┐
             │   Networking Devices  │
             │ (Cisco, Arista, SONiC)│
             └───────────┬───────────┘
                         │ Syslogs / Flow logs (sFlow, NetFlow, IPFIX)
                         ▼
                 ┌─────────────────┐
                 │  Splunk Index   │
                 │ (raw log storage│
                 │ + tokenization) │
                 │  10.20.11.23    │
                 └────────┬────────┘
                          │ REST API (port 8089)
                          ▼
             ┌────────────────────────────────────────┐
             │         SplunkQueryAgent               │
             │  (NL → SPL → Execute → Raw Results)   │
             │                                        │
             │  Tools:                                │
             │  ├─ get_splunk_connection_info          │
             │  ├─ list_indexes                        │
             │  ├─ discover_syslog_fields              │
             │  ├─ discover_flow_fields                │
             │  └─ search_splunk                       │
             └────────────┬───────────────────────────┘
                          │ Raw SPL results (JSON)
                          │ (via AgentTool — splunk_query_expert)
                          ▼
             ┌────────────────────────────────────────┐
             │         LogLens Agent (main)           │
             │  Interpretation + NL Answer            │
             │  Summarizes, tables, narratives,       │
             │  pattern detection                     │
             └────────────┬───────────────────────────┘
                          │ Human-readable Answer / Tables
                          ▼
                      User / NCP UI

SplunkQueryAgent handles all SPL mechanics: calls list_indexes to discover available data, picks discover_syslog_fields or discover_flow_fields based on the data type, then builds and executes the SPL using only discovered field names — never hardcodes or guesses field names.

LogLens Agent (main entry point) accepts plain-English questions, delegates data retrieval to SplunkQueryAgent via the splunk_query_expert AgentTool, interprets raw results, and returns structured summaries with pattern detection.

No ingestion agent is needed — Splunk handles ingestion and indexing natively.

Requirements

  • Python 3.11+
  • Splunk instance with syslog and/or flow data indexed
  • Splunk management API accessible on port 8089
  • NCP SDK (pip install ncp)

Supported Data Inputs

  • Syslog from NX-OS/IOS-XE, Arista EOS, SONiC (RFC 3164 / 5424)
  • Flow telemetry: sFlow, NetFlow, IPFIX (any sourcetype indexed in Splunk)

Setup & Deployment

1. Clone the Repository

git clone https://github.com/AvizNetworks/ncp-sdk-agents.git
cd ncp-sdk-agents/loglens-agent

2. Install NCP SDK

pip install ncp

3. Configure Splunk Credentials

Open tools/splunk_tools.py and update the default values to point to your Splunk instance. These defaults are baked into the package at build time:

_SPLUNK_HOST = os.getenv("SPLUNK_HOST", "<your-splunk-ip>")
_SPLUNK_PORT = int(os.getenv("SPLUNK_PORT", "8089"))
_SPLUNK_USERNAME = os.getenv("SPLUNK_USERNAME", "<username>")
_SPLUNK_PASSWORD = os.getenv("SPLUNK_PASSWORD", "<password>")
_VERIFY_SSL = os.getenv("SPLUNK_VERIFY_SSL", "false").lower() == "true"

Note: The .env file is excluded from .ncp packages by the SDK. Credentials must be set as defaults in splunk_tools.py or injected as environment variables on the NCP platform server.

To use token-based auth instead: generate a token in Splunk Web under Settings → Tokens → New Token and set it as _SPLUNK_TOKEN.

4. Authenticate with NCP Platform

ncp authenticate

When prompted, enter your NCP platform URL and API key. This writes the [platform] section in ncp.toml.

5. Build the Package

ncp package .

This produces loglens-agent.ncp in the project directory.

6. Onboard to NCP Platform

ncp onboard loglens-agent.ncp

To update an already-onboarded agent:

ncp onboard loglens-agent.ncp --update

After onboarding, assign the agent to users via Admin → Roles & Permissions → CustomAgents.

Configuration

Variable Description Set in
SPLUNK_HOST Splunk server hostname or IP splunk_tools.py default
SPLUNK_PORT Splunk management API port (default: 8089) splunk_tools.py default
SPLUNK_TOKEN Bearer token (preferred over username/password) splunk_tools.py default
SPLUNK_USERNAME Username (used only when no token is set) splunk_tools.py default
SPLUNK_PASSWORD Password (used only when no token is set) splunk_tools.py default
SPLUNK_VERIFY_SSL Verify TLS certificate (true/false, default: false) splunk_tools.py default
NCP platform URL Platform endpoint ncp authenticate → ncp.toml
NCP API key Platform authentication ncp authenticate → ncp.toml

Example Questions

Syslog / Device Events

Show BGP flap events in the last 24h by peer and VRF, with counts and timestamps.

List authentication failures by username and device in the past 6 hours.

For leaf1, summarize interface up/down events and BGP adjacency changes in the last 2 hours.

Explain repeated "protocol identification string lack carriage return" errors by device.

Give me a timeline of PSU and FAN events for Cisco-ONES on 2025-05-12.

Which devices generated the most error-level syslog events today?

Show all critical and emergency events from the last hour.

Flow Telemetry

Show the top 10 source IPs by bytes in the last 24 hours.

What protocols are generating the most traffic this week?

Show all flows to or from 10.0.0.5 in the past hour.

Give me the top source-destination pairs by flow count today.

Show hourly traffic volume for the last 7 days.

Success Criteria

Metric Target
SPL generation ≥ 95% correct translation from NL prompts
Interpretation ≥ 95% of summaries match manually derived insights
Syslog categories BGP_FLAP, AUTH_FAILURE, IF_UP_DOWN, PSU_EVENT, FAN_EVENT, OSPF_EVENT
Flow categories TOP_TALKERS, FLOW_PAIRS, PROTOCOL_DIST, TRAFFIC_TREND, IP_FLOWS
Latency ≤ 3s question → summarized result at 500 logs/sec

Screenshots

Event Description QnA

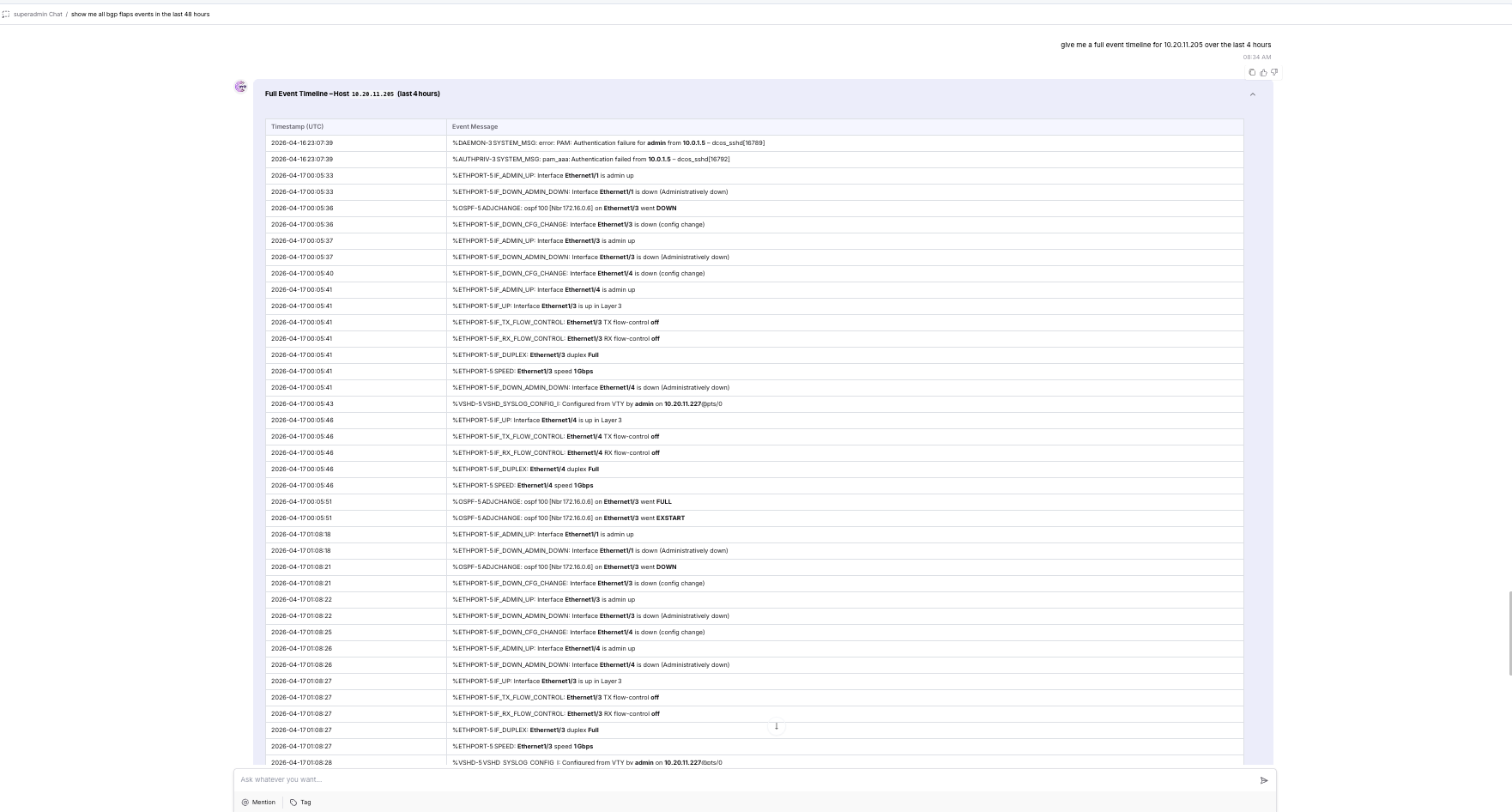

Event Descripion

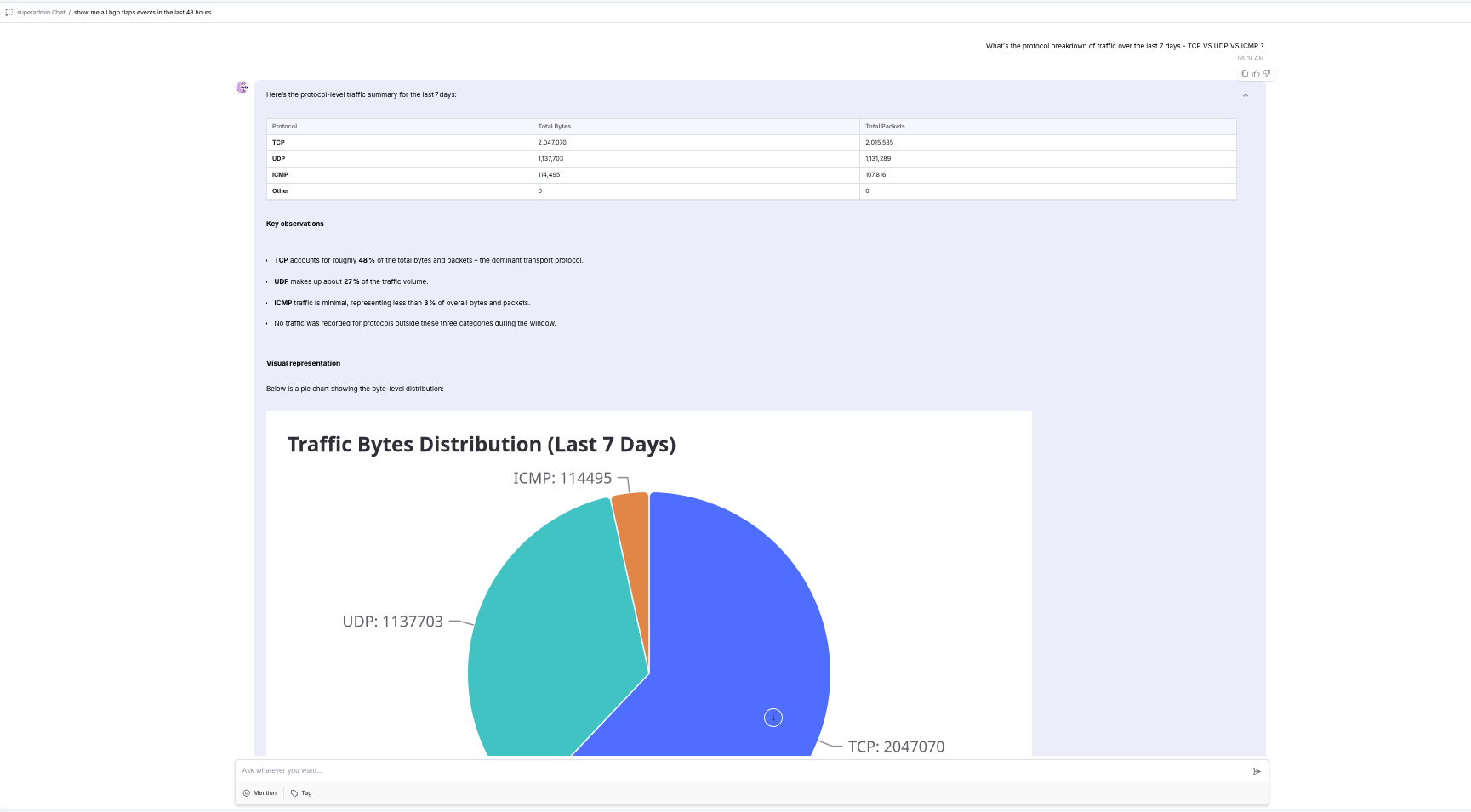

Visualization

Visualization

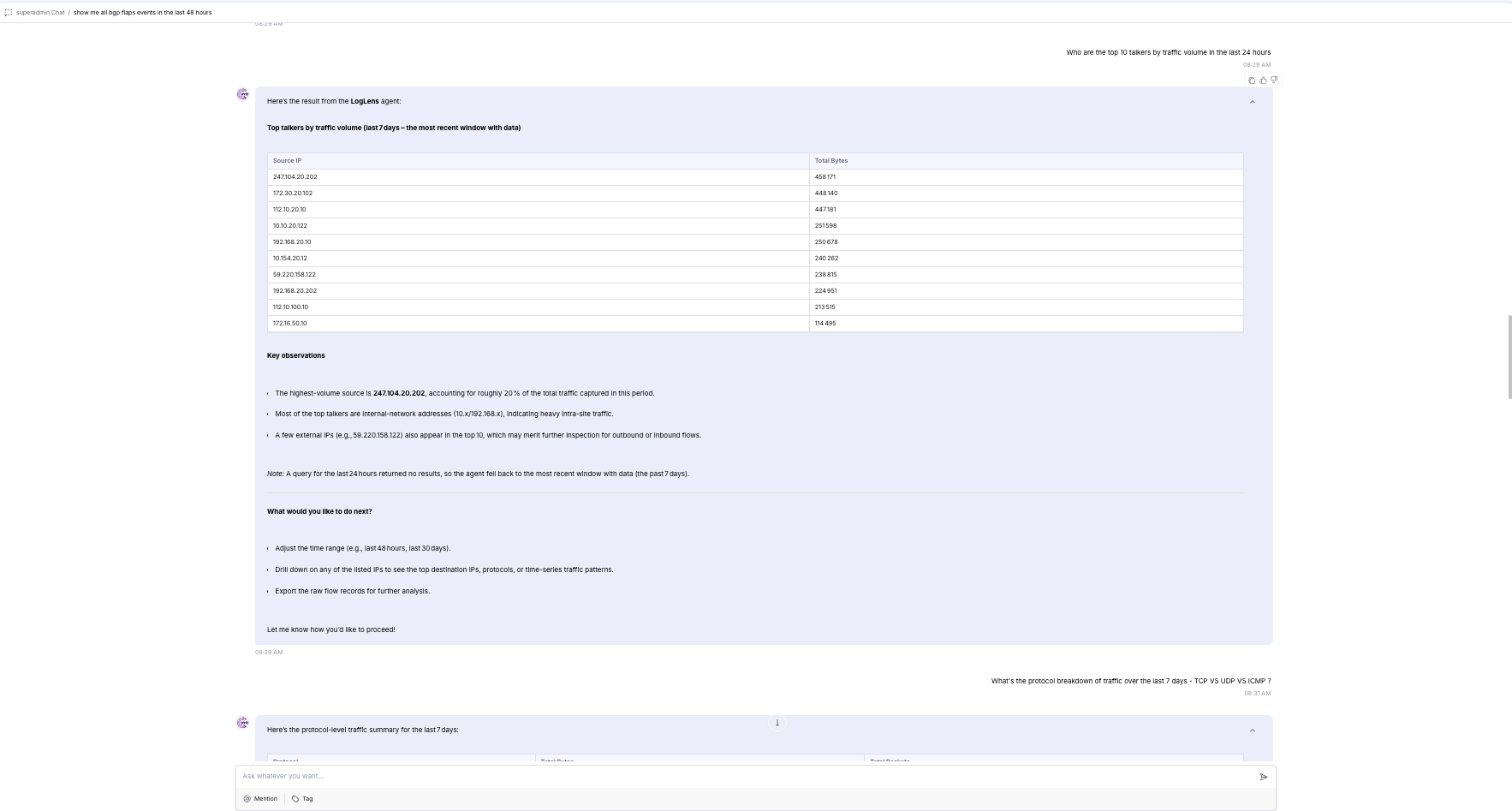

Checking top 10 traffic volume

Checking top 10 traffic volume

Project Structure

loglens-agent/
├── agents/
│   ├── __init__.py
│   └── main.py          # SplunkQueryAgent + LogLens (main entry point)
├── tools/
│   ├── __init__.py
│   └── splunk_tools.py  # Splunk REST API tools (set credentials here)
├── .env.example         # Reference for available environment variables
├── .gitignore
├── ncp.toml             # NCP project + platform config
├── requirements.txt
└── README.md
