L2-VXLAN + EVPN Asymmetric IRB over MC-LAG

With the asymmetric model, leaf devices serving as VXLAN tunnel endpoints (VTEPs) perform both routing and bridging to initiate the VXLAN tunnel (tunnel ingress).

With this model, VXLAN traffic must use the destination L2 VNI in each direction. The source VTEP always routes the traffic to the destination VLAN and sends it using the destination L2 VNI. When the traffic arrives at the destination VTEP then the leaf device forwards the traffic to the destination VLAN.

Operators have to configure all source and destination VLANs and their corresponding L2VNI values on each leaf switch even if a leaf switch does not host traffic for some of those VLANs. As a result, this model has scaling issues when the network has a large number of VLANs. However, when Data centers operations have fewer VLANs, this model will have lower latency over the L3VNI symmetric model.

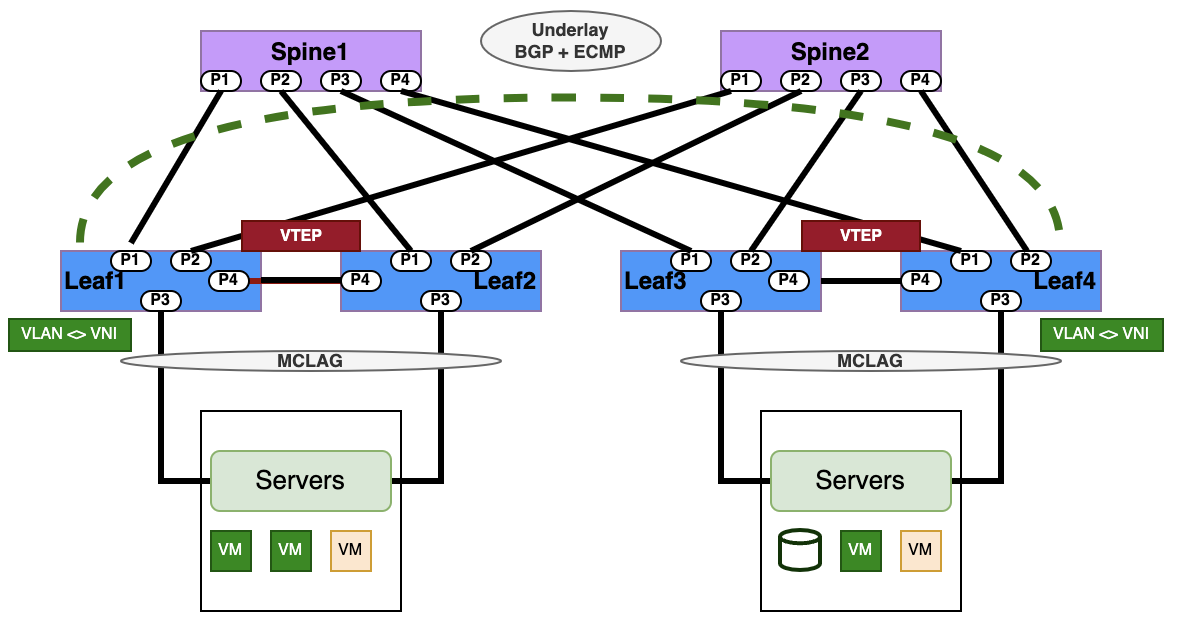

configuration

Configuration

In a "L2 VXLAN EVPN with MC LAG” Data Center fabric topology, the configuration sequence involves setting up the necessary components to enable Layer 2 VXLAN with EBGP EVPN over MC LAG interfaces . Following are the summarized configuration sequence:

IP Addressing and EBGP Underlay Configuration:

  • Assign IP addresses to all the switches participating in the fabric.
  • Configure the underlay routing protocol (usually EBGP) between the spine switches and the leaf switches to establish an IP reachability.
  • Establish eBGP routing protocols to exchange routing information between the data center sites.

Overlay VXLAN Tunnel Interface Configuration:

  • Create a VXLAN tunnel interface over each leaf switch to serve as the endpoint for VXLAN traffic. Assign an IP address to each tunnel interface.

MC-LAG Configuration:

  • Enable MCLAG on the leaf switches. Configure the MC LAG system ID and dual peering links between the MC LAG peer switches.
  • Set up a dedicated link between the MC LAG peer switches for control plane communication.
  • Configure MC LAG interfaces on each of the leaf switches to bundle the physical links connected to servers.
  • VLAN Configuration on MC LAG Interfaces - Apply the VLANs that need to be extended over the VXLAN fabric to the MC LAG interfaces.

VLAN-to-VNI Mapping:

  • Create a VLAN-to-VNI (VXLAN Network Identifier) mapping on all the leaf switches in the DC fabric. This maps VLANs to VXLAN segments (VNIs) that will be used for VXLAN encapsulation.
  • Configure VLAN-to-VNI (VXLAN Network Identifier) mapping to associate each VLAN in the data center with a specific VNI for Layer 2 extension.
  • Configure the designated ingress and egress leaf switches with VXLAN VTEP (VXLAN Tunnel Endpoint). This involves associating the VXLAN tunnel interface with the VLAN-to-VNI mapping.

BGP EVPN Configuration:

  • Enable BGP EVPN on each leaf switch and establish a BGP peering relationship with the other leaf switches.
  • Configure the BGP EVPN address family and activate the BGP EVPN signaling
  • Enable BGP with EVPN address family to exchange MAC and IP reachability information across the VXLAN fabric between data center sites.

Scenarios for L2 VXLAN Asymmetric Model

  • Data Center Fabric networks which leverages centralized gateway models.
  • Small and medium scale data center deployments with low latency use cases.

YAML template

Inventory:
  SSpines: 0
  Spines: 2
  Leafs: 4
  Tors: 0
Connectivity:
  SSpine: []
  Spine:
    - switchId: 1
      switchName: "Spine-1"
      ipAddress: "x.x.x.11"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "S1_Ethernet0 | L1_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet4 | L2_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet8 | L3_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet12 | L4_Ethernet48"
          staticLink: true
          properties:
    - switchId: 2
      switchName: "Spine-2"
      ipAddress: "x.x.x.12"
      ASN: 2002
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "S2_Ethernet0 | L1_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet4 | L2_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet8 | L3_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet12 | L4_Ethernet52"
          staticLink: true
          properties:
  Leaf:
    - switchId: 1
      switchName: "Leaf-1"
      ipAddress: "x.x.x.13"
      ASN: 1001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
        enabled: true
        peer: "L2"
        keepalive_vlan: 10
      Links:
        - link: "L1_Ethernet48 | S1_Ethernet0"
          staticLink: true
          properties:
        - link: "L1_Ethernet52 | S2_Ethernet0"
          staticLink: true
          properties:
        - link: "L1_Ethernet56 |  L2_Ethernet56"
          staticLink: true
          properties:
            mode: "MC-LAG"
        - link: "L1_Ethernet0 |  H1_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 201
            mc_po_group: 201
        - link: "L1_Ethernet4 |  H2_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 202
            mc_po_group: 202
    - switchId: 2
      switchName: "Leaf-2"
      ipAddress: "x.x.x.14"
      ASN: 1001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
        enabled: true
        peer: "L1"
        keepalive_vlan: 10
      Links:
        - link: "L2_Ethernet48 | S1_Ethernet4"
          staticLink: true
          properties:
        - link: "L2_Ethernet52 | S2_Ethernet4"
          staticLink: true
          properties:
        - link: "L2_Ethernet56 | L1_Ethernet56"
          staticLink: true
          properties:
            mode: "MC-LAG"
        - link: "L2_Ethernet0 |  H1_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 201
            mc_po_group: 201
        - link: "L2_Ethernet4 |  H2_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 202
            mc_po_group: 202
    - switchId: 3
      switchName: "Leaf-3"
      ipAddress: "x.x.x.15"
      ASN: 1002
      Credentials:
        user: "admin"
        password: "YourPaSsWoRd"
      mclag:
        enabled: true
        peer: "L4"
        keepalive_vlan: 10
      Links:
        - link: "L3_Ethernet48 | S1_Ethernet8"
          staticLink: true
          properties:
        - link: "L3_Ethernet52 | S2_Ethernet8"
          staticLink: true
          properties:
        - link: "L3_Ethernet56 | L4_Ethernet56"
          staticLink: true
          properties:
            mode: "MC-LAG"
        - link: "L3_Ethernet0 |  H3_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 203
            mc_po_group: 203
        - link: "L3_Ethernet4 |  H4_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 204
            mc_po_group: 204
    - switchId: 4
      switchName: "Leaf-4"
      ipAddress: "x.x.x.16"
      ASN: 1002
      Credentials:
        user: "admin"
        password: "YourPaSsWoRd"
      mclag:
        enabled: true
        peer: "L3"
        keepalive_vlan: 10
      Links:
        - link: "L4_Ethernet48 | S1_Ethernet12"
          staticLink: true
          properties:
        - link: "L4_Ethernet52 | S2_Ethernet12"
          staticLink: true
          properties:
        - link: "L4_Ethernet56 | L3_Ethernet56"
          staticLink: true
          properties:
            mode: "MC-LAG"
        - link: "L4_Ethernet0 |  H3_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 203
            mc_po_group: 203
        - link: "L4_Ethernet4 |  H4_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 204
            mc_po_group: 204
  Tor: []
BGP:
  BGP_U: false
  ND_RA: 30
PhysicalIfCfg:
  FEC: "Off"
  MTU: 9000
  AdminStatus: "Up"
ASN:
  SSpine: "10000-20000"
  Spine: "21000-50000"
  Leaf: "51000-60000"
  Tor: "61000-70000"
IPv4Pool:
  Loopback: "10.10.10.0/24"
  LeafSpine: "40.0.0.0/24"
  LeafTor: "39.0.0.0/24"
  Host: "49.0.0.0/24"
IPv6Pool:
  LeafSpine:
  LeafTor:
  Host:
NTP:
  server: "x.x.x.10"
  timezone: "Asia/Kolkata"
SYSLOG:
  server: "x.x.x.10"
SNMP:
  trapserver: "x.x.x.10"
Parameters:
  vlan: "200-205"
  vni: "20000-20005"
  anycast_gateway: "x.x.x.0/23"
  anycast_mac: "00:11:22:33:44:55"
  hosts_per_vlan: 10
  routing_symmetric: false
  sag: true

Config Applied and Verified

configuration

Applied Configuration on Switches

configure terminal
router-id 10.10.10.3
ntp add 100.100.10.10
clock timezone Asia/Kolkata
syslog add 100.100.10.10
snmp-server trap modify 2 100.100.10.10 port 161 vrf None community Public
hostname Leaf-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.3
!
vlan 10
!
vlan 200
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
vlan 205
!
vxlan vtep
loopback-ip 10.10.10.2
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 202 vni 20002
map vlan 203 vni 20003
map vlan 204 vni 20004
map vlan 205 vni 20005
!
interface port-channel 201
switchport mode trunk
switchport trunk allowed vlan add 201
mtu 9000
!
interface port-channel 202
switchport mode trunk
switchport trunk allowed vlan add 202
mtu 9000
!
interface port-channel 999
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
mtu 9000
!
interface ethernet Ethernet0
channel-group 201 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 202 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.1/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.9/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet56
channel-group 999 mode active
mtu 9000
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.0/31
!
interface vlan 200
anycast-gateway 100.10.0.1/26
!
interface vlan 201
anycast-gateway 100.10.0.65/26
!
interface vlan 202
anycast-gateway 100.10.0.129/26
!
interface vlan 203
anycast-gateway 100.10.0.193/26
!
interface vlan 204
anycast-gateway 100.10.1.1/26
!
interface vlan 205
anycast-gateway 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.3/32
!
interface loopback 2
ip address 10.10.10.2/32
!
router bgp 1001
neighbor 40.0.0.0 remote-as 2001
neighbor 40.0.0.8 remote-as 2002
neighbor 40.0.0.0 capability extended-nexthop
neighbor 40.0.0.8 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.0 allowas-in 1
  neighbor 40.0.0.8 allowas-in 1
  network 40.0.0.0/31
  network 40.0.0.8/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.0 activate
neighbor 40.0.0.8 activate
neighbor 40.0.0.0 allowas-in 1
neighbor 40.0.0.8 allowas-in 1
advertise-all-vni
!
mlag domain-id 1
peer-address 192.168.0.1
peer-link port-channel 999
src-address 192.168.0.0
member port-channel 201
member port-channel 202
local-interface vlan 10
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!

configure terminal
router-id 10.10.10.4
ntp add 100.100.10.10
clock timezone Asia/Kolkata
syslog add 100.100.10.10
snmp-server trap modify 2 100.100.10.10 port 161 vrf None community Public
hostname Leaf-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.4
!
vlan 10
!
vlan 200
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
vlan 205
!
vxlan vtep
loopback-ip 10.10.10.2
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 202 vni 20002
map vlan 203 vni 20003
map vlan 204 vni 20004
map vlan 205 vni 20005
!
interface port-channel 201
switchport mode trunk
switchport trunk allowed vlan add 201
mtu 9000
!
interface port-channel 202
switchport mode trunk
switchport trunk allowed vlan add 202
mtu 9000
!
interface port-channel 999
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
mtu 9000
!
interface ethernet Ethernet0
channel-group 201 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 202 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.3/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.11/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet56
channel-group 999 mode active
mtu 9000
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.1/31
!
interface vlan 200
anycast-gateway 100.10.0.1/26
!
interface vlan 201
anycast-gateway 100.10.0.65/26
!
interface vlan 202
anycast-gateway 100.10.0.129/26
!
interface vlan 203
anycast-gateway 100.10.0.193/26
!
interface vlan 204
anycast-gateway 100.10.1.1/26
!
interface vlan 205
anycast-gateway 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.4/32
!
interface loopback 2
ip address 10.10.10.2/32
!
router bgp 1001
neighbor 40.0.0.10 remote-as 2002
neighbor 40.0.0.2 remote-as 2001
neighbor 40.0.0.10 capability extended-nexthop
neighbor 40.0.0.2 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.10 allowas-in 1
  neighbor 40.0.0.2 allowas-in 1
  network 40.0.0.10/31
  network 40.0.0.2/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.10 activate
neighbor 40.0.0.2 activate
neighbor 40.0.0.10 allowas-in 1
neighbor 40.0.0.2 allowas-in 1
advertise-all-vni
!
mlag domain-id 1
peer-address 192.168.0.0
peer-link port-channel 999
src-address 192.168.0.1
member port-channel 201
member port-channel 202
local-interface vlan 10
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!

configure terminal
router-id 10.10.10.6
ntp add 100.100.10.10
clock timezone Asia/Kolkata
syslog add 100.100.10.10
snmp-server trap modify 2 100.100.10.10 port 161 vrf None community Public
hostname Leaf-3
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.6
!
vlan 10
!
vlan 200
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
vlan 205
!
vxlan vtep
loopback-ip 10.10.10.5
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 202 vni 20002
map vlan 203 vni 20003
map vlan 204 vni 20004
map vlan 205 vni 20005
!
interface port-channel 203
switchport mode trunk
switchport trunk allowed vlan add 203
mtu 9000
!
interface port-channel 204
switchport mode trunk
switchport trunk allowed vlan add 204
mtu 9000
!
interface port-channel 999
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
mtu 9000
!
interface ethernet Ethernet0
channel-group 203 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 204 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.5/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.13/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet56
channel-group 999 mode active
mtu 9000
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.2/31
!
interface vlan 200
anycast-gateway 100.10.0.1/26
!
interface vlan 201
anycast-gateway 100.10.0.65/26
!
interface vlan 202
anycast-gateway 100.10.0.129/26
!
interface vlan 203
anycast-gateway 100.10.0.193/26
!
interface vlan 204
anycast-gateway 100.10.1.1/26
!
interface vlan 205
anycast-gateway 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.6/32
!
interface loopback 2
ip address 10.10.10.5/32
!
router bgp 1002
neighbor 40.0.0.12 remote-as 2002
neighbor 40.0.0.4 remote-as 2001
neighbor 40.0.0.12 capability extended-nexthop
neighbor 40.0.0.4 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.12 allowas-in 1
  neighbor 40.0.0.4 allowas-in 1
  network 40.0.0.12/31
  network 40.0.0.4/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.12 activate
neighbor 40.0.0.4 activate
neighbor 40.0.0.12 allowas-in 1
neighbor 40.0.0.4 allowas-in 1
advertise-all-vni
!
mlag domain-id 1
peer-address 192.168.0.3
peer-link port-channel 999
src-address 192.168.0.2
member port-channel 203
member port-channel 204
local-interface vlan 10
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!

configure terminal
router-id 10.10.10.7
ntp add 100.100.10.10
clock timezone Asia/Kolkata
syslog add 100.100.10.10
snmp-server trap modify 2 100.100.10.10 port 161 vrf None community Public
hostname Leaf-4
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.7
!
vlan 10
!
vlan 200
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
vlan 205
!
vxlan vtep
loopback-ip 10.10.10.5
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 202 vni 20002
map vlan 203 vni 20003
map vlan 204 vni 20004
map vlan 205 vni 20005
!
interface port-channel 203
switchport mode trunk
switchport trunk allowed vlan add 203
mtu 9000
!
interface port-channel 204
switchport mode trunk
switchport trunk allowed vlan add 204
mtu 9000
!
interface port-channel 999
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
mtu 9000
!
interface ethernet Ethernet0
channel-group 203 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 204 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.7/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.15/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet56
channel-group 999 mode active
mtu 9000
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.3/31
!
interface vlan 200
anycast-gateway 100.10.0.1/26
!
interface vlan 201
anycast-gateway 100.10.0.65/26
!
interface vlan 202
anycast-gateway 100.10.0.129/26
!
interface vlan 203
anycast-gateway 100.10.0.193/26
!
interface vlan 204
anycast-gateway 100.10.1.1/26
!
interface vlan 205
anycast-gateway 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.7/32
!
interface loopback 2
ip address 10.10.10.5/32
!
router bgp 1002
neighbor 40.0.0.14 remote-as 2002
neighbor 40.0.0.6 remote-as 2001
neighbor 40.0.0.14 capability extended-nexthop
neighbor 40.0.0.6 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.14 allowas-in 1
  neighbor 40.0.0.6 allowas-in 1
  network 40.0.0.14/31
  network 40.0.0.6/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.14 activate
neighbor 40.0.0.6 activate
neighbor 40.0.0.14 allowas-in 1
neighbor 40.0.0.6 allowas-in 1
advertise-all-vni
!
mlag domain-id 1
peer-address 192.168.0.2
peer-link port-channel 999
src-address 192.168.0.3
member port-channel 203
member port-channel 204
local-interface vlan 10
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!

configure terminal
router-id 10.10.10.0
ntp add 100.100.10.10
clock timezone Asia/Kolkata
syslog add 100.100.10.10
snmp-server trap modify 2 100.100.10.10 port 161 vrf None community Public
hostname Spine-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.0
!
interface ethernet Ethernet0
ip address 40.0.0.0/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet12
ip address 40.0.0.6/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
ip address 40.0.0.2/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet8
ip address 40.0.0.4/31
mtu 9000
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.0/32
!
router bgp 2001
neighbor 40.0.0.1 remote-as 1001
neighbor 40.0.0.3 remote-as 1001
neighbor 40.0.0.5 remote-as 1002
neighbor 40.0.0.7 remote-as 1002
neighbor 40.0.0.1 capability extended-nexthop
neighbor 40.0.0.3 capability extended-nexthop
neighbor 40.0.0.5 capability extended-nexthop
neighbor 40.0.0.7 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.1 allowas-in 1
  neighbor 40.0.0.3 allowas-in 1
  neighbor 40.0.0.5 allowas-in 1
  neighbor 40.0.0.7 allowas-in 1
  network 40.0.0.0/31
  network 40.0.0.2/31
  network 40.0.0.4/31
  network 40.0.0.6/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.1 activate
neighbor 40.0.0.3 activate
neighbor 40.0.0.5 activate
neighbor 40.0.0.7 activate
neighbor 40.0.0.1 allowas-in 1
neighbor 40.0.0.3 allowas-in 1
neighbor 40.0.0.5 allowas-in 1
neighbor 40.0.0.7 allowas-in 1
!

configure terminal
router-id 10.10.10.1
ntp add 100.100.10.10
clock timezone Asia/Kolkata
syslog add 100.100.10.10
snmp-server trap modify 2 100.100.10.10 port 161 vrf None community Public
hostname Spine-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.1
!
interface ethernet Ethernet0
ip address 40.0.0.8/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet12
ip address 40.0.0.14/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
ip address 40.0.0.10/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet8
ip address 40.0.0.12/31
mtu 9000
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.1/32
!
router bgp 2002
neighbor 40.0.0.11 remote-as 1001
neighbor 40.0.0.13 remote-as 1002
neighbor 40.0.0.15 remote-as 1002
neighbor 40.0.0.9 remote-as 1001
neighbor 40.0.0.11 capability extended-nexthop
neighbor 40.0.0.13 capability extended-nexthop
neighbor 40.0.0.15 capability extended-nexthop
neighbor 40.0.0.9 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.11 allowas-in 1
  neighbor 40.0.0.13 allowas-in 1
  neighbor 40.0.0.15 allowas-in 1
  neighbor 40.0.0.9 allowas-in 1
  network 40.0.0.10/31
  network 40.0.0.12/31
  network 40.0.0.14/31
  network 40.0.0.8/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.11 activate
neighbor 40.0.0.13 activate
neighbor 40.0.0.15 activate
neighbor 40.0.0.9 activate
neighbor 40.0.0.11 allowas-in 1
neighbor 40.0.0.13 allowas-in 1
neighbor 40.0.0.15 allowas-in 1
neighbor 40.0.0.9 allowas-in 1
!
