Supported Topologies

BGP IP CLOS

Overview

BGP IP-CLOS is a network design and routing architecture commonly used in large-scale data center and cloud environments. IP-CLOS provides a scalable and flexible solution for interconnecting multiple routers in a hierarchical manner allowing efficient utilization of network resources and simplified routing.

Spine-Leaf Architecture:

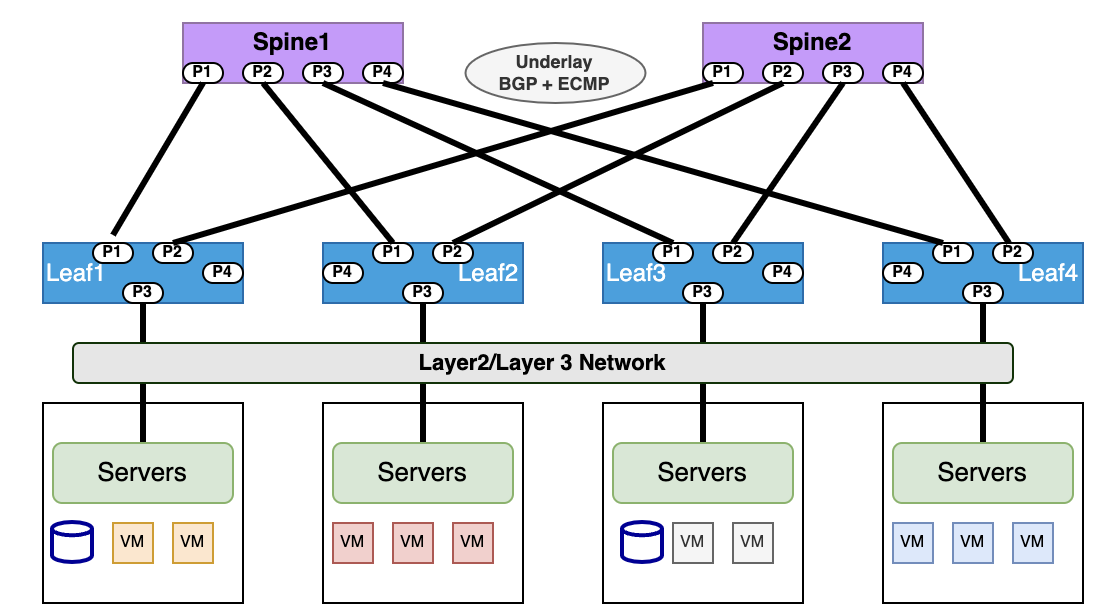

The BGP IP CLOS topology is based on a spine-leaf architecture. In this design, there are two layers of switches - spine switches and leaf switches. The spine switches provide connectivity between the leaf switches, forming the "spine" of the topology. The leaf switches connect directly to servers, forming the "leafs" of the topology.

BGP as the Underlay Routing Protocol:

In the BGP IP CLOS topology, BGP is used as the underlay routing protocol. The spine switches and leaf switches run BGP to establish IP reachability and advertise loopback addresses. This allows for dynamic and efficient IP routing throughout the fabric.

Unnumbered BGP interfaces:

Unnumbered BGP interfaces are particularly useful in deployments where IPv4 prefixes are advertised through BGP over a section without any IPv4/IPv6 address configuration on links. As a result, the routing entries are also IPv4 for destination lookup and have IPv6 next hops for forwarding purposes. This saves IP addresses pool utilized for underlay routing .

Non-Blocking Connectivity:

The CLOS design ensures that every leaf switch is connected to every spine switch, providing non-blocking connectivity between any server in the data center fabric. This architecture allows for optimal east-west traffic flow within the data center supporting the communication needs of modern distributed applications and workloads.

Equal-Cost Multi-Path (ECMP) Routing:

Within the spine layer, BGP utilizes Equal-Cost Multi-Path (ECMP) routing to distribute traffic evenly across multiple paths. ECMP enables load balancing of traffic, maximizing the utilization of available links and increasing overall DC fabric ‘s network capacity. In SONiC, the BGP multipath option works by default. It is set to 64 paths so the switch can install multiple equal-cost BGP paths to the forwarding table and load balance the traffic across multiple links.

Configuration

  • IPv4/IPv6/BGP-Unnumbered Underlay Fabric.
  • Host facing port with IPv4/IPv6/L2-Access/L2-Trunk based on requirement.
  • ECMP Load Balancing for Leaf & Spine
  • SVI Configuration for the Gateway

The template includes the inventory, connectivity, BGP and other configurations needed for the fabric topology formation . You can modify the template to fit your specific needs

Configuration

YAML Template

Inventory:
  SSpines: 0
  Spines: 2
  Leafs: 4
  Tors: 0
Connectivity:
  SSpine: []
  Spine:
    - switchId: 1
      switchName: "Spine-1"
      ipAddress: "x.x.x.x"
      ASN: 1001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "S1_Ethernet0 | L1_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet4 | L2_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet8 | L3_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet12 | L4_Ethernet48"
          staticLink: true
          properties:
    - switchId: 2
      switchName: "Spine-2"
      ipAddress: "x.x.x.12"
      ASN: 1002
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "S2_Ethernet0 | L1_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet4 | L2_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet8 | L3_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet12 | L4_Ethernet52"
          staticLink: true
          properties:
  Leaf:
    - switchId: 1
      switchName: "Leaf-1"
      ipAddress: "x.x.x.13"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "L1_Ethernet48 | S1_Ethernet0"
          staticLink: true
          properties:
        - link: "L1_Ethernet52 | S2_Ethernet0"
          staticLink: true
          properties:
        - link: "L1_Ethernet56 |  L2_Ethernet56"
          staticLink: true
          properties:
        - link: "L1_Ethernet0 |  H1_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Access"
            vlan: 201
        - link: "L1_Ethernet4 |  H2_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Access"
            vlan: 202
    - switchId: 2
      switchName: "Leaf-2"
      ipAddress: "x.x.x.x"
      ASN: 2002
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "L2_Ethernet48 | S1_Ethernet4"
          staticLink: true
          properties:
        - link: "L2_Ethernet52 | S2_Ethernet4"
          staticLink: true
          properties:
        - link: "L2_Ethernet56 | L1_Ethernet56"
          staticLink: true
          properties:
        - link: "L2_Ethernet0 |  H1_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Access"
            vlan: 201
        - link: "L2_Ethernet4 |  H2_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Access"
            vlan: 202
    - switchId: 3
      switchName: "Leaf-3"
      ipAddress: "x.x.x.15"
      ASN: 2003
      Credentials:
        user: "admin"
        password: "YourPaSsWoRd"
      mclag:
      Links:
        - link: "L3_Ethernet48 | S1_Ethernet8"
          staticLink: true
          properties:
        - link: "L3_Ethernet52 | S2_Ethernet8"
          staticLink: true
          properties:
        - link: "L3_Ethernet56 | L4_Ethernet56"
          staticLink: true
          properties:
        - link: "L3_Ethernet0 |  H3_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Access"
            vlan: 203
        - link: "L3_Ethernet4 |  H4_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Access"
            vlan: 204
    - switchId: 4
      switchName: "Leaf-4"
      ipAddress: "x.x.x.16"
      ASN: 2004
      Credentials:
        user: "admin"
        password: "YourPaSsWoRd"
      mclag:
      Links:
        - link: "L4_Ethernet48 | S1_Ethernet12"
          staticLink: true
          properties:
        - link: "L4_Ethernet52 | S2_Ethernet12"
          staticLink: true
          properties:
        - link: "L4_Ethernet56 | L3_Ethernet56"
          staticLink: true
          properties:
        - link: "L4_Ethernet0 |  H3_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Access"
            vlan: 203
        - link: "L4_Ethernet4 |  H4_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Access"
            vlan: 204
  Tor: []
BGP:
  BGP_U: false
  ND_RA: 30
PhysicalIfCfg:
  FEC: "Off"
  MTU: 9000
  AdminStatus: "Up"
ASN:
  SSpine: "10000-20000"
  Spine: "21000-50000"
  Leaf: "51000-60000"
  Tor: "61000-70000"
IPv4Pool:
  Loopback: "10.10.10.0/24"
  LeafSpine: "40.0.0.0/24"
  LeafTor: "39.0.0.0/24"
  Host: "49.0.0.0/24"
IPv6Pool:
  LeafSpine:
  LeafTor:
  Host:
NTP:
  server: "x.x.x.10"
  timezone: "Asia/Kolkata"
SYSLOG:
  server: "x.x.x.10"
SNMP:
  trapserver: "x.x.x.10"
Parameters:
  vlan: "200-205"
  vni:
  anycast_gateway: "10.10.10..0/23"
  anycast_mac: "00:11:22:33:44:55"
  hosts_per_vlan: 10
  routing_symmetric: false
  sag: false

Configure, Validate & Verify through UI

configuration

IP Configuration

Leaf1 [10.101.101.13]

        L1_Ethernet48 [40.0.0.1/31] | S1_Ethernet0 [40.0.0.0/31]
        L1_Ethernet52 [40.0.0.9/31] | S2_Ethernet0 [40.0.0.8/31]
        L1_Ethernet56 [192.168.0.0/31] | L2_Ethernet56 [192.168.0.1/31]
        L1_Ethernet0 | H1_Ethernet0
        L1_Ethernet4 | H2_Ethernet0

Leaf2 [10.101.101.14]

        L2_Ethernet48 [40.0.0.3/31] | S1_Ethernet4 [40.0.0.2/31]
        L2_Ethernet52 [40.0.0.11/31] | S2_Ethernet4 [40.0.0.10/31]
        L2_Ethernet56 [192.168.0.1/31] | L1_Ethernet56 [192.168.0.0/31]
        L2_Ethernet0 | H1_Ethernet1
        L2_Ethernet4 | H2_Ethernet1


Leaf3 [10.101.101.15]

        L3_Ethernet48 [40.0.0.5/31] | S1_Ethernet8 [40.0.0.4/31]
        L3_Ethernet52 [40.0.0.13/31] | S2_Ethernet8 [40.0.0.12/31]
        L3_Ethernet56 [192.168.0.2/31] | L4_Ethernet56 [192.168.0.3/31]
        L3_Ethernet0 | H3_Ethernet0
        L3_Ethernet4 | H4_Ethernet0

Leaf4 [10.101.101.16]

        L4_Ethernet48 [40.0.0.7/31] | S1_Ethernet12 [40.0.0.6/31]
        L4_Ethernet52 [40.0.0.15/31] | S2_Ethernet12 [40.0.0.14/31]
        L4_Ethernet56 [192.168.0.3/31] | L3_Ethernet56 [192.168.0.2/31]
        L4_Ethernet0 | H3_Ethernet1
        L4_Ethernet4 | H4_Ethernet1

Spine1 [10.101.101.11]

       S1_Ethernet0 [40.0.0.0/31] | L1_Ethernet48 [40.0.0.1/31]
        S1_Ethernet4 [40.0.0.2/31] | L2_Ethernet48 [40.0.0.3/31]
        S1_Ethernet8 [40.0.0.4/31] | L3_Ethernet48 [40.0.0.5/31]
        S1_Ethernet12 [40.0.0.6/31] | L4_Ethernet48 [40.0.0.7/31]

Spine2 [10.101.101.12]

        S2_Ethernet0 [40.0.0.8/31] | L1_Ethernet52 [40.0.0.9/31]
        S2_Ethernet4 [40.0.0.10/31] | L2_Ethernet52 [40.0.0.11/31]
        S2_Ethernet8 [40.0.0.12/31] | L3_Ethernet52 [40.0.0.13/31]
        S2_Ethernet12 [40.0.0.14/31] | L4_Ethernet52 [40.0.0.15/31]


Applied Configuration on Switches

configure terminal
router-id 10.10.10.2
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.2
!
vlan 201
!
vlan 202
!
interface ethernet Ethernet0
switchport access vlan 201
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
switchport access vlan 202
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.1/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.9/31
mtu 9000
forward-error-correction none
!
interface vlan 201
ip address 100.10.0.1/26
!
interface vlan 202
ip address 100.10.0.65/26
!
interface loopback 1
ip address 10.10.10.2/32
!
router bgp 2001
neighbor 40.0.0.0 remote-as 1001
neighbor 40.0.0.8 remote-as 1002
neighbor 40.0.0.0 capability extended-nexthop
neighbor 40.0.0.8 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.0 allowas-in 1
  neighbor 40.0.0.8 allowas-in 1
  network 40.0.0.0/31
  network 40.0.0.8/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
configure terminal
router-id 10.10.10.4
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.4
!
vlan 201
!
vlan 202
!
interface ethernet Ethernet0
switchport access vlan 201
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
switchport access vlan 202
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.3/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.11/31
mtu 9000
forward-error-correction none
!
interface vlan 201
ip address 100.10.0.129/26
!
interface vlan 202
ip address 100.10.0.193/26
!
interface loopback 1
ip address 10.10.10.4/32
!
router bgp 2002
neighbor 40.0.0.10 remote-as 1002
neighbor 40.0.0.2 remote-as 1001
neighbor 40.0.0.10 capability extended-nexthop
neighbor 40.0.0.2 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.10 allowas-in 1
  neighbor 40.0.0.2 allowas-in 1
  network 40.0.0.10/31
  network 40.0.0.2/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
configure terminal
router-id 10.10.10.6
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-3
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.6
!
vlan 203
!
vlan 204
!
interface ethernet Ethernet0
switchport access vlan 203
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
switchport access vlan 204
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.5/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.13/31
mtu 9000
forward-error-correction none
!
interface vlan 203
ip address 100.10.1.1/26
!
interface vlan 204
ip address 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.6/32
!
router bgp 2003
neighbor 40.0.0.12 remote-as 1002
neighbor 40.0.0.4 remote-as 1001
neighbor 40.0.0.12 capability extended-nexthop
neighbor 40.0.0.4 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.12 allowas-in 1
  neighbor 40.0.0.4 allowas-in 1
  network 40.0.0.12/31
  network 40.0.0.4/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
configure terminal
router-id 10.10.10.8
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-4
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.8
!
vlan 203
!
vlan 204
!
interface ethernet Ethernet0
switchport access vlan 203
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
switchport access vlan 204
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.7/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.15/31
mtu 9000
forward-error-correction none
!
interface vlan 203
ip address 100.10.1.129/26
!
interface vlan 204
ip address 100.10.1.193/26
!
interface loopback 1
ip address 10.10.10.8/32
!
router bgp 2004
neighbor 40.0.0.14 remote-as 1002
neighbor 40.0.0.6 remote-as 1001
neighbor 40.0.0.14 capability extended-nexthop
neighbor 40.0.0.6 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.14 allowas-in 1
  neighbor 40.0.0.6 allowas-in 1
  network 40.0.0.14/31
  network 40.0.0.6/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
configure terminal
router-id 10.10.10.0
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Spine-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.0
!
interface ethernet Ethernet0
ip address 40.0.0.0/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet12
ip address 40.0.0.6/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
ip address 40.0.0.2/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet8
ip address 40.0.0.4/31
mtu 9000
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.0/32
!
router bgp 1001
neighbor 40.0.0.1 remote-as 2001
neighbor 40.0.0.3 remote-as 2002
neighbor 40.0.0.5 remote-as 2003
neighbor 40.0.0.7 remote-as 2004
neighbor 40.0.0.1 capability extended-nexthop
neighbor 40.0.0.3 capability extended-nexthop
neighbor 40.0.0.5 capability extended-nexthop
neighbor 40.0.0.7 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.1 allowas-in 1
  neighbor 40.0.0.3 allowas-in 1
  neighbor 40.0.0.5 allowas-in 1
  neighbor 40.0.0.7 allowas-in 1
  network 40.0.0.0/31
  network 40.0.0.2/31
  network 40.0.0.4/31
  network 40.0.0.6/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
configure terminal
router-id 10.10.10.1
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Spine-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.1
!
interface ethernet Ethernet0
ip address 40.0.0.8/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet12
ip address 40.0.0.14/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
ip address 40.0.0.10/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet8
ip address 40.0.0.12/31
mtu 9000
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.1/32
!
router bgp 1002
neighbor 40.0.0.11 remote-as 2002
neighbor 40.0.0.13 remote-as 2003
neighbor 40.0.0.15 remote-as 2004
neighbor 40.0.0.9 remote-as 2001
neighbor 40.0.0.11 capability extended-nexthop
neighbor 40.0.0.13 capability extended-nexthop
neighbor 40.0.0.15 capability extended-nexthop
neighbor 40.0.0.9 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.11 allowas-in 1
  neighbor 40.0.0.13 allowas-in 1
  neighbor 40.0.0.15 allowas-in 1
  neighbor 40.0.0.9 allowas-in 1
  network 40.0.0.10/31
  network 40.0.0.12/31
  network 40.0.0.14/31
  network 40.0.0.8/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
