DCI EVPN Multihoming

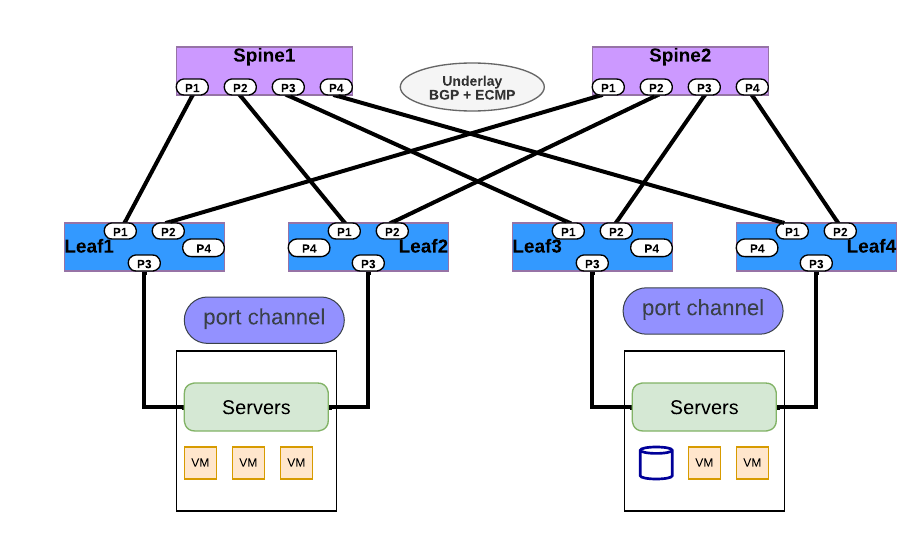

DCI EVPN Multihoming is a technology designed to enhance the reliability, redundancy, and load balancing capabilities of data center networks by allowing devices to connect to and utilize resources across multiple data center locations simultaneously. It leverages EVPN for efficient layer 2 and layer 3 connectivity and introduces multihoming concepts to achieve its goals.



YAML Template

Inventory:
  SSpines: 0
  Spines: 2
  Leafs: 4
  Tors: 0
Connectivity:
  SSpine: []
  Spine:
    - switchId: 1
      switchName: "Spine-1"
      ipAddress: "x.x.x.11"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "S1_Ethernet0 | L1_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet4 | L2_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet8 | L3_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet12 | L4_Ethernet48"
          staticLink: true
          properties:
    - switchId: 2
      switchName: "Spine-2"
      ipAddress: "x.x.x.12"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "S2_Ethernet0 | L1_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet4 | L2_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet8 | L3_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet12 | L4_Ethernet52"
          staticLink: true
          properties:
  Leaf:
    - switchId: 1
      switchName: "Leaf-1"
      ipAddress: "x.x.x.13"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "L1_Ethernet48 | S1_Ethernet0"
          staticLink: true
          properties:
        - link: "L1_Ethernet52 | S2_Ethernet0"
          staticLink: true
          properties:
        - link: "L1_Ethernet56 |  L2_Ethernet56"
          staticLink: true
          properties:
        - link: "L1_Ethernet0 |  H1_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 201
            mh_enabled: true
            mh_po_group: 201
        - link: "L1_Ethernet4 |  H2_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 202
            mh_enabled: true
            mh_po_group: 202
    - switchId: 2
      switchName: "Leaf-2"
      ipAddress: "x.x.x.14"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "L2_Ethernet48 | S1_Ethernet4"
          staticLink: true
          properties:
        - link: "L2_Ethernet52 | S2_Ethernet4"
          staticLink: true
          properties:
        - link: "L2_Ethernet56 | L1_Ethernet56"
          staticLink: true
          properties:
        - link: "L2_Ethernet0 |  H1_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 201
            mh_enabled: true
            mh_po_group: 201
        - link: "L2_Ethernet4 |  H2_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 202
            mh_enabled: true
            mh_po_group: 202
    - switchId: 3
      switchName: "Leaf-3"
      ipAddress: "x.x.x.15"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "YourPaSsWoRd"
      mclag:
      Links:
        - link: "L3_Ethernet48 | S1_Ethernet8"
          staticLink: true
          properties:
        - link: "L3_Ethernet52 | S2_Ethernet8"
          staticLink: true
          properties:
        - link: "L3_Ethernet56 | L4_Ethernet56"
          staticLink: true
          properties:
        - link: "L3_Ethernet0 |  H3_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 203
            mh_enabled: true
            mh_po_group: 203
        - link: "L3_Ethernet4 |  H4_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 204
            mh_enabled: true
            mh_po_group: 204
    - switchId: 4
      switchName: "Leaf-4"
      ipAddress: "x.x.x.16"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "YourPaSsWoRd"
      mclag:
      Links:
        - link: "L4_Ethernet48 | S1_Ethernet12"
          staticLink: true
          properties:
        - link: "L4_Ethernet52 | S2_Ethernet12"
          staticLink: true
          properties:
        - link: "L4_Ethernet56 | L3_Ethernet56"
          staticLink: true
          properties:
        - link: "L4_Ethernet0 |  H3_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 203
            mh_enabled: true
            mh_po_group: 203
        - link: "L4_Ethernet4 |  H4_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 204
            mh_enabled: true
            mh_po_group: 204
  Tor: []
BGP:
  BGP_U: false
  ND_RA: 30
PhysicalIfCfg:
  FEC: "Off"
  MTU: 9000
  AdminStatus: "Up"
ASN:
  SSpine: "10000-20000"
  Spine: "21000-50000"
  Leaf: "51000-60000"
  Tor: "61000-70000"
IPv4Pool:
  Loopback: "10.10.10.0/24"
  LeafSpine: "40.0.0.0/24"
  LeafTor: "39.0.0.0/24"
  Host: "49.0.0.0/24"
IPv6Pool:
  LeafSpine:
  LeafTor:
  Host:
NTP:
  server: "x.x.x.10"
  timezone: "Asia/Kolkata"
SYSLOG:
  server: "x.x.x.10"
SNMP:
  trapserver: "x.x.x.10"
Parameters:
  vlan: "200-205"
  vni: "20000-20005"
  anycast_gateway: "x.x.x.0/23"
  anycast_mac: "00:11:22:33:44:55"
  hosts_per_vlan: 10
  routing_symmetric: false
  sag: true


Config Applied and Validated


Applied Configuration on Switches

configure terminal
router-id 10.10.10.2
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.2
!
vlan 200
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
vlan 205
!
vxlan vtep
loopback-ip 10.10.10.3
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 202 vni 20002
map vlan 203 vni 20003
map vlan 204 vni 20004
map vlan 205 vni 20005
!
interface port-channel 201
switchport mode trunk
switchport trunk allowed vlan add 201
mtu 9000
evpn-mh es-id 1 es-sys-mac 1c:f6:1a:7d:c7:82
!
interface port-channel 202
switchport mode trunk
switchport trunk allowed vlan add 202
mtu 9000
evpn-mh es-id 2 es-sys-mac b2:24:08:47:36:38
!
interface ethernet Ethernet0
channel-group 201 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 202 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.1/31
mtu 9000
forward-error-correction none
evpn-mh uplink
!
interface ethernet Ethernet52
ip address 40.0.0.9/31
mtu 9000
forward-error-correction none
evpn-mh uplink
!
interface vlan 200
anycast-gateway 100.10.0.1/26
!
interface vlan 201
anycast-gateway 100.10.0.65/26
!
interface vlan 202
anycast-gateway 100.10.0.129/26
!
interface vlan 203
anycast-gateway 100.10.0.193/26
!
interface vlan 204
anycast-gateway 100.10.1.1/26
!
interface vlan 205
anycast-gateway 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.2/32
!
interface loopback 2
ip address 10.10.10.3/32
!
router bgp 2001
neighbor 40.0.0.0 remote-as 2001
neighbor 40.0.0.8 remote-as 2001
neighbor 40.0.0.0 capability extended-nexthop
neighbor 40.0.0.8 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.0 allowas-in 1
neighbor 40.0.0.8 allowas-in 1
network 40.0.0.0/31
network 40.0.0.8/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.0 activate
neighbor 40.0.0.8 activate
neighbor 40.0.0.0 allowas-in 1
neighbor 40.0.0.8 allowas-in 1
advertise-all-vni
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!

configure terminal
router-id 10.10.10.4
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.4
!
vlan 200
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
vlan 205
!
vxlan vtep
loopback-ip 10.10.10.5
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 202 vni 20002
map vlan 203 vni 20003
map vlan 204 vni 20004
map vlan 205 vni 20005
!
interface port-channel 201
switchport mode trunk
switchport trunk allowed vlan add 201
mtu 9000
evpn-mh es-id 1 es-sys-mac 1c:f6:1a:7d:c7:82
!
interface port-channel 202
switchport mode trunk
switchport trunk allowed vlan add 202
mtu 9000
evpn-mh es-id 2 es-sys-mac b2:24:08:47:36:38
!
interface ethernet Ethernet0
channel-group 201 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 202 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.3/31
mtu 9000
forward-error-correction none
evpn-mh uplink
!
interface ethernet Ethernet52
ip address 40.0.0.11/31
mtu 9000
forward-error-correction none
evpn-mh uplink
!
interface vlan 200
anycast-gateway 100.10.0.1/26
!
interface vlan 201
anycast-gateway 100.10.0.65/26
!
interface vlan 202
anycast-gateway 100.10.0.129/26
!
interface vlan 203
anycast-gateway 100.10.0.193/26
!
interface vlan 204
anycast-gateway 100.10.1.1/26
!
interface vlan 205
anycast-gateway 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.4/32
!
interface loopback 2
ip address 10.10.10.5/32
!
router bgp 2001
neighbor 40.0.0.10 remote-as 2001
neighbor 40.0.0.2 remote-as 2001
neighbor 40.0.0.10 capability extended-nexthop
neighbor 40.0.0.2 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.10 allowas-in 1
neighbor 40.0.0.2 allowas-in 1
network 40.0.0.10/31
network 40.0.0.2/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.10 activate
neighbor 40.0.0.2 activate
neighbor 40.0.0.10 allowas-in 1
neighbor 40.0.0.2 allowas-in 1
advertise-all-vni
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!
configure terminal
router-id 10.10.10.6
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-3
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.6
!
vlan 200
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
vlan 205
!
vxlan vtep
loopback-ip 10.10.10.7
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 202 vni 20002
map vlan 203 vni 20003
map vlan 204 vni 20004
map vlan 205 vni 20005
!
interface port-channel 203
switchport mode trunk
switchport trunk allowed vlan add 203
mtu 9000
evpn-mh es-id 3 es-sys-mac 28:6f:43:ff:45:d0
!
interface port-channel 204
switchport mode trunk
switchport trunk allowed vlan add 204
mtu 9000
evpn-mh es-id 4 es-sys-mac 3c:b9:e1:0e:e8:0c
!
interface ethernet Ethernet0
channel-group 203 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 204 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.5/31
mtu 9000
forward-error-correction none
evpn-mh uplink
!
interface ethernet Ethernet52
ip address 40.0.0.13/31
mtu 9000
forward-error-correction none
evpn-mh uplink
!
interface vlan 200
anycast-gateway 100.10.0.1/26
!
interface vlan 201
anycast-gateway 100.10.0.65/26
!
interface vlan 202
anycast-gateway 100.10.0.129/26
!
interface vlan 203
anycast-gateway 100.10.0.193/26
!
interface vlan 204
anycast-gateway 100.10.1.1/26
!
interface vlan 205
anycast-gateway 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.6/32
!
interface loopback 2
ip address 10.10.10.7/32
!
router bgp 2001
neighbor 40.0.0.12 remote-as 2001
neighbor 40.0.0.4 remote-as 2001
neighbor 40.0.0.12 capability extended-nexthop
neighbor 40.0.0.4 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.12 allowas-in 1
neighbor 40.0.0.4 allowas-in 1
network 40.0.0.12/31
network 40.0.0.4/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.12 activate
neighbor 40.0.0.4 activate
neighbor 40.0.0.12 allowas-in 1
neighbor 40.0.0.4 allowas-in 1
advertise-all-vni
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!
configure terminal
router-id 10.10.10.8
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-4
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.8
!
vlan 200
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
vlan 205
!
vxlan vtep
loopback-ip 10.10.10.9
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 202 vni 20002
map vlan 203 vni 20003
map vlan 204 vni 20004
map vlan 205 vni 20005
!
interface port-channel 203
switchport mode trunk
switchport trunk allowed vlan add 203
mtu 9000
evpn-mh es-id 3 es-sys-mac 28:6f:43:ff:45:d0
!
interface port-channel 204
switchport mode trunk
switchport trunk allowed vlan add 204
mtu 9000
evpn-mh es-id 4 es-sys-mac 3c:b9:e1:0e:e8:0c
!
interface ethernet Ethernet0
channel-group 203 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 204 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.7/31
mtu 9000
forward-error-correction none
evpn-mh uplink
!
interface ethernet Ethernet52
ip address 40.0.0.15/31
mtu 9000
forward-error-correction none
evpn-mh uplink
!
interface vlan 200
anycast-gateway 100.10.0.1/26
!
interface vlan 201
anycast-gateway 100.10.0.65/26
!
interface vlan 202
anycast-gateway 100.10.0.129/26
!
interface vlan 203
anycast-gateway 100.10.0.193/26
!
interface vlan 204
anycast-gateway 100.10.1.1/26
!
interface vlan 205
anycast-gateway 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.8/32
!
interface loopback 2
ip address 10.10.10.9/32
!
router bgp 2001
neighbor 40.0.0.14 remote-as 2001
neighbor 40.0.0.6 remote-as 2001
neighbor 40.0.0.14 capability extended-nexthop
neighbor 40.0.0.6 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.14 allowas-in 1
neighbor 40.0.0.6 allowas-in 1
network 40.0.0.14/31
network 40.0.0.6/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.14 activate
neighbor 40.0.0.6 activate
neighbor 40.0.0.14 allowas-in 1
neighbor 40.0.0.6 allowas-in 1
advertise-all-vni
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!
configure terminal
router-id 10.10.10.0
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Spine-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.0
!
interface ethernet Ethernet0
ip address 40.0.0.0/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet12
ip address 40.0.0.6/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
ip address 40.0.0.2/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet8
ip address 40.0.0.4/31
mtu 9000
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.0/32
!
router bgp 2001
neighbor 40.0.0.1 remote-as 2001
neighbor 40.0.0.3 remote-as 2001
neighbor 40.0.0.5 remote-as 2001
neighbor 40.0.0.7 remote-as 2001
neighbor 40.0.0.1 capability extended-nexthop
neighbor 40.0.0.3 capability extended-nexthop
neighbor 40.0.0.5 capability extended-nexthop
neighbor 40.0.0.7 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.1 allowas-in 1
neighbor 40.0.0.3 allowas-in 1
neighbor 40.0.0.5 allowas-in 1
neighbor 40.0.0.7 allowas-in 1
neighbor 40.0.0.1 route-reflector-client
neighbor 40.0.0.3 route-reflector-client
neighbor 40.0.0.5 route-reflector-client
neighbor 40.0.0.7 route-reflector-client
neighbor 40.0.0.1 next-hop-self force
neighbor 40.0.0.3 next-hop-self force
neighbor 40.0.0.5 next-hop-self force
neighbor 40.0.0.7 next-hop-self force
network 40.0.0.0/31
network 40.0.0.2/31
network 40.0.0.4/31
network 40.0.0.6/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.1 activate
neighbor 40.0.0.3 activate
neighbor 40.0.0.5 activate
neighbor 40.0.0.7 activate
neighbor 40.0.0.1 allowas-in 1
neighbor 40.0.0.3 allowas-in 1
neighbor 40.0.0.5 allowas-in 1
neighbor 40.0.0.7 allowas-in 1
neighbor 40.0.0.1 route-reflector-client
neighbor 40.0.0.3 route-reflector-client
neighbor 40.0.0.5 route-reflector-client
neighbor 40.0.0.7 route-reflector-client
neighbor 40.0.0.1 next-hop-self force
neighbor 40.0.0.3 next-hop-self force
neighbor 40.0.0.5 next-hop-self force
neighbor 40.0.0.7 next-hop-self force
!
configure terminal
router-id 10.10.10.1
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Spine-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.1
!
interface ethernet Ethernet0
ip address 40.0.0.8/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet12
ip address 40.0.0.14/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
ip address 40.0.0.10/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet8
ip address 40.0.0.12/31
mtu 9000
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.1/32
!
router bgp 2001
neighbor 40.0.0.11 remote-as 2001
neighbor 40.0.0.13 remote-as 2001
neighbor 40.0.0.15 remote-as 2001
neighbor 40.0.0.9 remote-as 2001
neighbor 40.0.0.11 capability extended-nexthop
neighbor 40.0.0.13 capability extended-nexthop
neighbor 40.0.0.15 capability extended-nexthop
neighbor 40.0.0.9 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.11 allowas-in 1
neighbor 40.0.0.13 allowas-in 1
neighbor 40.0.0.15 allowas-in 1
neighbor 40.0.0.9 allowas-in 1
neighbor 40.0.0.11 route-reflector-client
neighbor 40.0.0.13 route-reflector-client
neighbor 40.0.0.15 route-reflector-client
neighbor 40.0.0.9 route-reflector-client
neighbor 40.0.0.11 next-hop-self force
neighbor 40.0.0.13 next-hop-self force
neighbor 40.0.0.15 next-hop-self force
neighbor 40.0.0.9 next-hop-self force
network 40.0.0.10/31
network 40.0.0.12/31
network 40.0.0.14/31
network 40.0.0.8/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.11 activate
neighbor 40.0.0.13 activate
neighbor 40.0.0.15 activate
neighbor 40.0.0.9 activate
neighbor 40.0.0.11 allowas-in 1
neighbor 40.0.0.13 allowas-in 1
neighbor 40.0.0.15 allowas-in 1
neighbor 40.0.0.9 allowas-in 1
neighbor 40.0.0.11 route-reflector-client
neighbor 40.0.0.13 route-reflector-client
neighbor 40.0.0.15 route-reflector-client
neighbor 40.0.0.9 route-reflector-client
neighbor 40.0.0.11 next-hop-self force
neighbor 40.0.0.13 next-hop-self force
neighbor 40.0.0.15 next-hop-self force
neighbor 40.0.0.9 next-hop-self force
!
