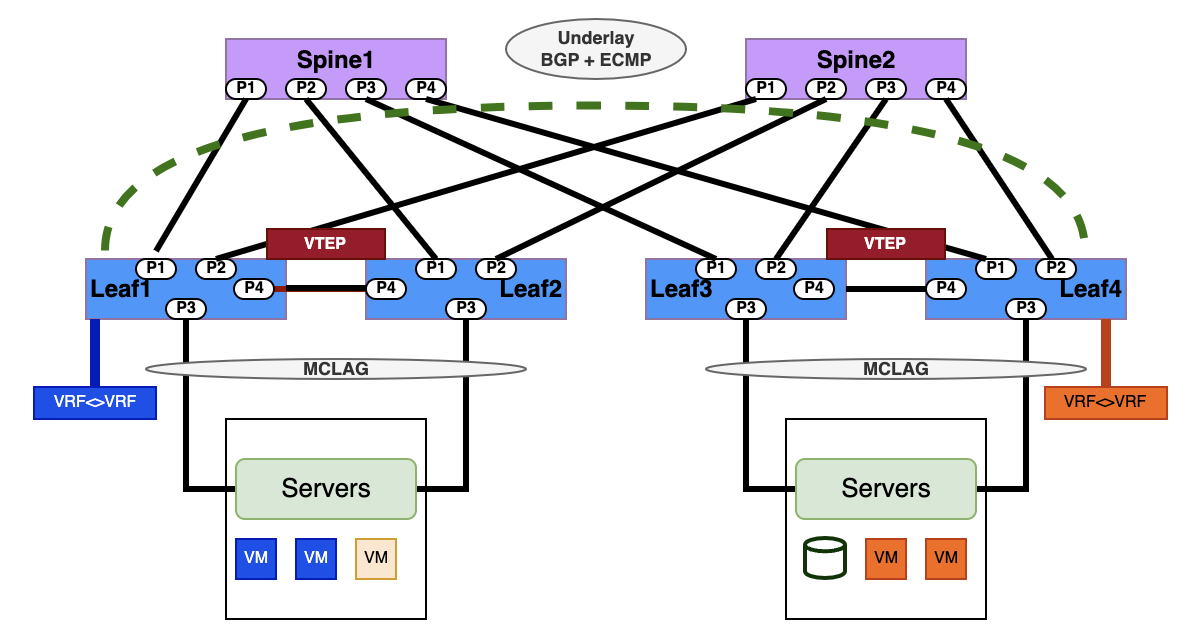

L3-VXLAN + EVPN Symmetric IRB over MC-LAG

With the symmetric IRB routing model, the VTEPs do routing and bridging on both the ingress and egress sides of the VXLAN tunnel. As a result, VTEPs can do inter-subnet routing for the same virtual routing and forwarding (VRF) instance mapped to the same VNI in both directions. We implement this model for EVPN Type 2 routes the same way as for EVPN Type 5 routes. These VTEPs use dedicated Layer 3 traffic VNI in both directions for each tenant VRF instance.

configuration

Configuration

Configure VXLAN and EVPN

  • Set up VXLAN tunnel interfaces on the participating switches and routers to facilitate the creation of VXLAN overlays.
  • Enable EVPN on these devices to handle the MAC and IP reachability information distribution.

VXLAN VRF Mapping

  • Configure VRF-to-VNI (VXLAN Network Identifier) mapping. Each VRF in the Data Center will be mapped to a specific VNI to extend Layer 3 connectivity.

BGP EVPN Configuration

  • Configure BGP to run EVPN for the exchange of MAC and IP reachability information between Data Center sites.
  • Establish BGP peering between the participating switches and routers for the control plane establishment .

Symmetric IRB Configuration:

  • Set up the Layer 3 gateway IP address on the leaf switches for each L3 VNI. Ensure that this gateway IP address is consistent across all the interconnected data center sites.

Routing Configuration:

  • Set up eBGP routing protocols over all the Data Center fabric switches to ensure the routing information is exchanged between the interconnected data center sites.
  • This routing information will be used to direct traffic between the sites through the symmetric IRB gateway.

Scenarios for L3 VXLAN Symmetric Model

  • Network Operators looking for multi-tenancy for their VM applications in a data center fabric.
  • Advantage on scalability and efficiency of the Data center Fabric .

YAML Template

Inventory:
  SSpines: 0
  Spines: 2
  Leafs: 4
  Tors: 0
Connectivity:
  SSpine: []
  Spine:
    - switchId: 1
      switchName: "Spine-1"
      ipAddress: "x.x.x.11"
      ASN: 2001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "S1_Ethernet0 | L1_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet4 | L2_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet8 | L3_Ethernet48"
          staticLink: true
          properties:
        - link: "S1_Ethernet12 | L4_Ethernet48"
          staticLink: true
          properties:
    - switchId: 2
      switchName: "Spine-2"
      ipAddress: "x.x.x.12"
      ASN: 2002
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
      Links:
        - link: "S2_Ethernet0 | L1_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet4 | L2_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet8 | L3_Ethernet52"
          staticLink: true
          properties:
        - link: "S2_Ethernet12 | L4_Ethernet52"
          staticLink: true
          properties:
  Leaf:
    - switchId: 1
      switchName: "Leaf-1"
      ipAddress: "x.x.x.13"
      ASN: 1001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
        enabled: true
        peer: "L2"
        keepalive_vlan: 10
      Links:
        - link: "L1_Ethernet48 | S1_Ethernet0"
          staticLink: true
          properties:
        - link: "L1_Ethernet52 | S2_Ethernet0"
          staticLink: true
          properties:
        - link: "L1_Ethernet56 |  L2_Ethernet56"
          staticLink: true
          properties:
            mode: "MC-LAG"
        - link: "L1_Ethernet0 |  H1_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 200
            mc_po_group: 200
            vrf: 1
        - link: "L1_Ethernet4 |  H2_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 201
            mc_po_group: 201
            vrf: 1
    - switchId: 2
      switchName: "Leaf-2"
      ipAddress: "x.x.x.14"
      ASN: 1001
      Credentials:
        user: "admin"
        password: "admin"
      mclag:
        enabled: true
        peer: "L1"
        keepalive_vlan: 10
      Links:
        - link: "L2_Ethernet48 | S1_Ethernet4"
          staticLink: true
          properties:
        - link: "L2_Ethernet52 | S2_Ethernet4"
          staticLink: true
          properties:
        - link: "L2_Ethernet56 | L1_Ethernet56"
          staticLink: true
          properties:
            mode: "MC-LAG"
        - link: "L2_Ethernet0 |  H1_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 200
            mc_po_group: 200
            vrf: 1
        - link: "L2_Ethernet4 |  H2_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 201
            mc_po_group: 201
            vrf: 1
    - switchId: 3
      switchName: "Leaf-3"
      ipAddress: "x.x.x.15"
      ASN: 1002
      Credentials:
        user: "admin"
        password: "YourPaSsWoRd"
      mclag:
        enabled: true
        peer: "L4"
        keepalive_vlan: 10
      Links:
        - link: "L3_Ethernet48 | S1_Ethernet8"
          staticLink: true
          properties:
        - link: "L3_Ethernet52 | S2_Ethernet8"
          staticLink: true
          properties:
        - link: "L3_Ethernet56 | L4_Ethernet56"
          staticLink: true
          properties:
            mode: "MC-LAG"
        - link: "L3_Ethernet0 |  H3_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 200
            mc_po_group: 200
            vrf: 1
        - link: "L3_Ethernet4 |  H4_Ethernet0"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 201
            mc_po_group: 201
            vrf: 1
    - switchId: 4
      switchName: "Leaf-4"
      ipAddress: "x.x.x.16"
      ASN: 1002
      Credentials:
        user: "admin"
        password: "YourPaSsWoRd"
      mclag:
        enabled: true
        peer: "L3"
        keepalive_vlan: 10
      Links:
        - link: "L4_Ethernet48 | S1_Ethernet12"
          staticLink: true
          properties:
        - link: "L4_Ethernet52 | S2_Ethernet12"
          staticLink: true
          properties:
        - link: "L4_Ethernet56 | L3_Ethernet56"
          staticLink: true
          properties:
            mode: "MC-LAG"
        - link: "L4_Ethernet0 |  H3_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 200
            mc_po_group: 200
            vrf: 1
        - link: "L4_Ethernet4 |  H4_Ethernet1"
          staticLink: true
          properties:
            mode: "L2-Trunk"
            vlan: 201
            mc_po_group: 201
            vrf: 1
  Tor: []
BGP:
  BGP_U: false
  ND_RA: 30
PhysicalIfCfg:
  FEC: "Off"
  MTU: 9000
  AdminStatus: "Up"
ASN:
  SSpine: "10000-20000"
  Spine: "21000-50000"
  Leaf: "51000-60000"
  Tor: "61000-70000"
IPv4Pool:
  Loopback: "10.10.10.0/24"
  LeafSpine: "40.0.0.0/24"
  LeafTor: "39.0.0.0/24"
  Host: "49.0.0.0/24"
IPv6Pool:
  LeafSpine:
  LeafTor:
  Host:
NTP:
  server: "x.x.x.10"
  timezone: "Asia/Kolkata"
SYSLOG:
  server: "x.x.x.10"
SNMP:
  trapserver: "x.x.x.10"
Parameters:
  vlan: "200-205"
  vni: "20000-20005"
  anycast_gateway: "x.x.x.0/23"
  anycast_mac: "00:11:22:33:44:55"
  hosts_per_vlan: 10
  routing_symmetric: true
  irb_vlan: "300-305"
  irb_vni: "30000-30005"
  sag: true

Config Applied and Validated

configuration

Applied Configuration on Switches

configure terminal
router-id 10.10.10.3
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.3
!
vlan 10
!
vlan 200
vrf member Vrf1
!
vlan 201
vrf member Vrf1
!
vlan 300
vrf member Vrf1
!
vxlan vtep
loopback-ip 10.10.10.2
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 300 vni 30000
!
vrf context Vrf1
vni 30000
!
interface port-channel 200
switchport mode trunk
switchport trunk allowed vlan add 200
mtu 9000
!
interface port-channel 201
switchport mode trunk
switchport trunk allowed vlan add 201
mtu 9000
!
interface port-channel 999
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 200
switchport trunk allowed vlan add 201
mtu 9000
!
interface ethernet Ethernet0
channel-group 200 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 201 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.1/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.9/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet56
channel-group 999 mode active
mtu 9000
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.0/31
!
interface vlan 200
anycast-gateway 100.10.0.1/27
!
interface vlan 201
anycast-gateway 100.10.0.33/27
!
interface loopback 1
ip address 10.10.10.3/32
!
interface loopback 2
ip address 10.10.10.2/32
!
router bgp 1001
neighbor 40.0.0.0 remote-as 2001
neighbor 40.0.0.8 remote-as 2002
neighbor 40.0.0.0 capability extended-nexthop
neighbor 40.0.0.8 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
  vrf Vrf1
address-family ipv4 unicast
  neighbor 40.0.0.0 allowas-in 1
  neighbor 40.0.0.8 allowas-in 1
  network 40.0.0.0/31
  network 40.0.0.8/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.0 activate
neighbor 40.0.0.8 activate
neighbor 40.0.0.0 allowas-in 1
neighbor 40.0.0.8 allowas-in 1
advertise-all-vni
!
mlag domain-id 1
peer-address 192.168.0.1
peer-link port-channel 999
src-address 192.168.0.0
member port-channel 200
member port-channel 201
local-interface vlan 10
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!
configure terminal
router-id 10.10.10.4
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.4
!
vlan 10
!
vlan 200
vrf member Vrf1
!
vlan 201
vrf member Vrf1
!
vlan 300
vrf member Vrf1
!
vxlan vtep
loopback-ip 10.10.10.2
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 300 vni 30000
!
vrf context Vrf1
vni 30000
!
interface port-channel 200
switchport mode trunk
switchport trunk allowed vlan add 200
mtu 9000
!
interface port-channel 201
switchport mode trunk
switchport trunk allowed vlan add 201
mtu 9000
!
interface port-channel 999
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 200
switchport trunk allowed vlan add 201
mtu 9000
!
interface ethernet Ethernet0
channel-group 200 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 201 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.3/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.11/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet56
channel-group 999 mode active
mtu 9000
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.1/31
!
interface vlan 200
anycast-gateway 100.10.0.1/27
!
interface vlan 201
anycast-gateway 100.10.0.33/27
!
interface loopback 1
ip address 10.10.10.4/32
!
interface loopback 2
ip address 10.10.10.2/32
!
router bgp 1001
neighbor 40.0.0.10 remote-as 2002
neighbor 40.0.0.2 remote-as 2001
neighbor 40.0.0.10 capability extended-nexthop
neighbor 40.0.0.2 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
  vrf Vrf1
address-family ipv4 unicast
  neighbor 40.0.0.10 allowas-in 1
  neighbor 40.0.0.2 allowas-in 1
  network 40.0.0.10/31
  network 40.0.0.2/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.10 activate
neighbor 40.0.0.2 activate
neighbor 40.0.0.10 allowas-in 1
neighbor 40.0.0.2 allowas-in 1
advertise-all-vni
!
mlag domain-id 1
peer-address 192.168.0.0
peer-link port-channel 999
src-address 192.168.0.1
member port-channel 200
member port-channel 201
local-interface vlan 10
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!
configure terminal
router-id 10.10.10.6
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-3
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.6
!
vlan 10
!
vlan 200
vrf member Vrf1
!
vlan 201
vrf member Vrf1
!
vlan 300
vrf member Vrf1
!
vxlan vtep
loopback-ip 10.10.10.5
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 300 vni 30000
!
vrf context Vrf1
vni 30000
!
interface port-channel 200
switchport mode trunk
switchport trunk allowed vlan add 200
mtu 9000
!
interface port-channel 201
switchport mode trunk
switchport trunk allowed vlan add 201
mtu 9000
!
interface port-channel 999
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 200
switchport trunk allowed vlan add 201
mtu 9000
!
interface ethernet Ethernet0
channel-group 200 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 201 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.5/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.13/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet56
channel-group 999 mode active
mtu 9000
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.2/31
!
interface vlan 200
anycast-gateway 100.10.0.1/27
!
interface vlan 201
anycast-gateway 100.10.0.33/27
!
interface loopback 1
ip address 10.10.10.6/32
!
interface loopback 2
ip address 10.10.10.5/32
!
router bgp 1002
neighbor 40.0.0.12 remote-as 2002
neighbor 40.0.0.4 remote-as 2001
neighbor 40.0.0.12 capability extended-nexthop
neighbor 40.0.0.4 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
  vrf Vrf1
address-family ipv4 unicast
  neighbor 40.0.0.12 allowas-in 1
  neighbor 40.0.0.4 allowas-in 1
  network 40.0.0.12/31
  network 40.0.0.4/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.12 activate
neighbor 40.0.0.4 activate
neighbor 40.0.0.12 allowas-in 1
neighbor 40.0.0.4 allowas-in 1
advertise-all-vni
!
mlag domain-id 1
peer-address 192.168.0.3
peer-link port-channel 999
src-address 192.168.0.2
member port-channel 200
member port-channel 201
local-interface vlan 10
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!
configure terminal
router-id 10.10.10.7
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Leaf-4
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.7
!
vlan 10
!
vlan 200
vrf member Vrf1
!
vlan 201
vrf member Vrf1
!
vlan 300
vrf member Vrf1
!
vxlan vtep
loopback-ip 10.10.10.5
evpn_nvo nvo
map vlan 200 vni 20000
map vlan 201 vni 20001
map vlan 300 vni 30000
!
vrf context Vrf1
vni 30000
!
interface port-channel 200
switchport mode trunk
switchport trunk allowed vlan add 200
mtu 9000
!
interface port-channel 201
switchport mode trunk
switchport trunk allowed vlan add 201
mtu 9000
!
interface port-channel 999
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 200
switchport trunk allowed vlan add 201
mtu 9000
!
interface ethernet Ethernet0
channel-group 200 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
channel-group 201 mode active
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet48
ip address 40.0.0.7/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet52
ip address 40.0.0.15/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet56
channel-group 999 mode active
mtu 9000
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.3/31
!
interface vlan 200
anycast-gateway 100.10.0.1/27
!
interface vlan 201
anycast-gateway 100.10.0.33/27
!
interface loopback 1
ip address 10.10.10.7/32
!
interface loopback 2
ip address 10.10.10.5/32
!
router bgp 1002
neighbor 40.0.0.14 remote-as 2002
neighbor 40.0.0.6 remote-as 2001
neighbor 40.0.0.14 capability extended-nexthop
neighbor 40.0.0.6 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
  vrf Vrf1
address-family ipv4 unicast
  neighbor 40.0.0.14 allowas-in 1
  neighbor 40.0.0.6 allowas-in 1
  network 40.0.0.14/31
  network 40.0.0.6/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.14 activate
neighbor 40.0.0.6 activate
neighbor 40.0.0.14 allowas-in 1
neighbor 40.0.0.6 allowas-in 1
advertise-all-vni
!
mlag domain-id 1
peer-address 192.168.0.2
peer-link port-channel 999
src-address 192.168.0.3
member port-channel 200
member port-channel 201
local-interface vlan 10
!
sag
anycast-gateway-mac 00:11:22:33:44:55
enable ip
enable ipv6
!
configure terminal
router-id 10.10.10.0
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Spine-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.0
!
interface ethernet Ethernet0
ip address 40.0.0.0/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet12
ip address 40.0.0.6/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
ip address 40.0.0.2/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet8
ip address 40.0.0.4/31
mtu 9000
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.0/32
!
router bgp 2001
neighbor 40.0.0.1 remote-as 1001
neighbor 40.0.0.3 remote-as 1001
neighbor 40.0.0.5 remote-as 1002
neighbor 40.0.0.7 remote-as 1002
neighbor 40.0.0.1 capability extended-nexthop
neighbor 40.0.0.3 capability extended-nexthop
neighbor 40.0.0.5 capability extended-nexthop
neighbor 40.0.0.7 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.1 allowas-in 1
  neighbor 40.0.0.3 allowas-in 1
  neighbor 40.0.0.5 allowas-in 1
  neighbor 40.0.0.7 allowas-in 1
  network 40.0.0.0/31
  network 40.0.0.2/31
  network 40.0.0.4/31
  network 40.0.0.6/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.1 activate
neighbor 40.0.0.3 activate
neighbor 40.0.0.5 activate
neighbor 40.0.0.7 activate
neighbor 40.0.0.1 allowas-in 1
neighbor 40.0.0.3 allowas-in 1
neighbor 40.0.0.5 allowas-in 1
neighbor 40.0.0.7 allowas-in 1
!
configure terminal
router-id 10.10.10.1
ntp add 10.101.118.10
clock timezone Asia/Kolkata
syslog add 10.101.118.10
snmp-server trap modify 2 10.101.118.10 port 161 vrf None community Public
hostname Spine-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.1
!
interface ethernet Ethernet0
ip address 40.0.0.8/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet12
ip address 40.0.0.14/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet4
ip address 40.0.0.10/31
mtu 9000
forward-error-correction none
!
interface ethernet Ethernet8
ip address 40.0.0.12/31
mtu 9000
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.1/32
!
router bgp 2002
neighbor 40.0.0.11 remote-as 1001
neighbor 40.0.0.13 remote-as 1002
neighbor 40.0.0.15 remote-as 1002
neighbor 40.0.0.9 remote-as 1001
neighbor 40.0.0.11 capability extended-nexthop
neighbor 40.0.0.13 capability extended-nexthop
neighbor 40.0.0.15 capability extended-nexthop
neighbor 40.0.0.9 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
  neighbor 40.0.0.11 allowas-in 1
  neighbor 40.0.0.13 allowas-in 1
  neighbor 40.0.0.15 allowas-in 1
  neighbor 40.0.0.9 allowas-in 1
  network 40.0.0.10/31
  network 40.0.0.12/31
  network 40.0.0.14/31
  network 40.0.0.8/31
  redistribute connected
  redistribute static
!
address-family ipv6 unicast
  redistribute connected
  redistribute static
!
address-family l2vpn evpn
neighbor 40.0.0.11 activate
neighbor 40.0.0.13 activate
neighbor 40.0.0.15 activate
neighbor 40.0.0.9 activate
neighbor 40.0.0.11 allowas-in 1
neighbor 40.0.0.13 allowas-in 1
neighbor 40.0.0.15 allowas-in 1
neighbor 40.0.0.9 allowas-in 1
!
