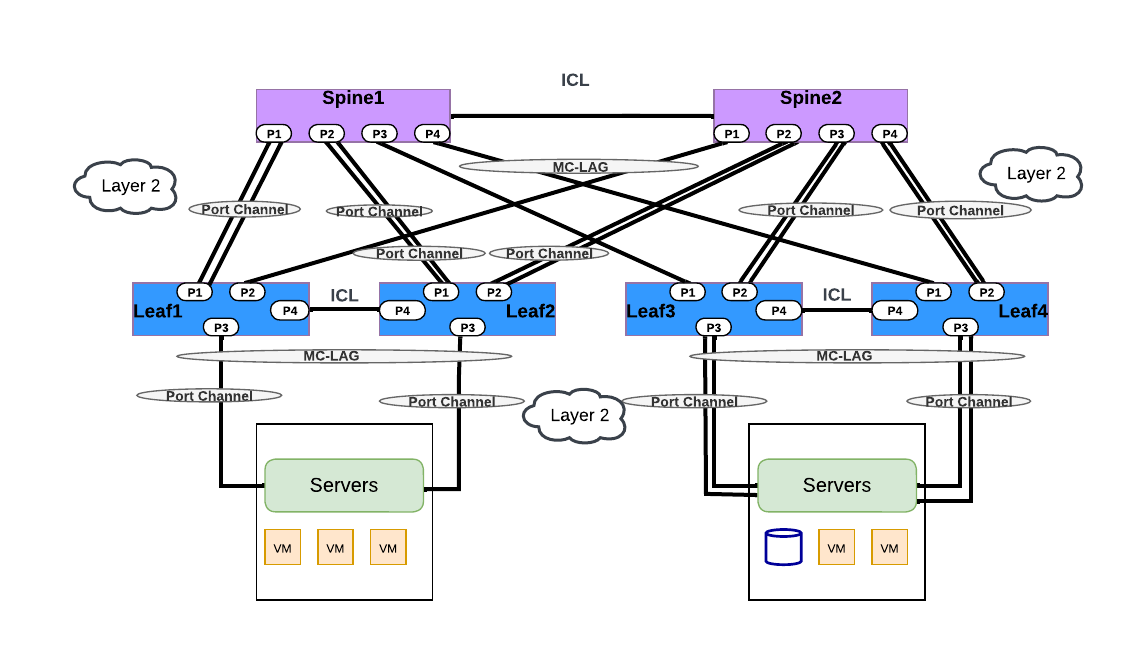

Layer2 Leaf Spine topology
Layer2 Leaf-Spine architecture offers low-latency, high-bandwidth connectivity with redundancy and efficient traffic distribution. A spine-leaf architecture is data center network topology that consists of two switching layers—a spine and leaf. The leaf layer consists of access switches that aggregate traffic from servers and connect directly to the spine or network core. Spine switches interconnect all leaf switches in a full-mesh topology.
One of the main advantages of the L2LS design is that the pair of spine switches are presented to the leaf-layer switches as a single switch through the use of MLAG (Multi-chassis Link Aggregation Group), which inherently allows LAYER 2 flexibility throughout the environment. This also eliminates the dependence on spanning-tree for loop prevention and allows for full utilization of all links between the leaf and spine. It is worth noting that the scalability of the spine is limited to a total of 2 switches. This Enables NetOps to deploy more than two tiers to overcome density and oversubscription limitations. Leaf and spine switches are interconnected with LAG (802.3ad) links and each leaf has at least one connection to each spine.
Yaml Template
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "x.x.x.11"
ASN:
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "S2"
keepalive_vlan: 10
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "201,202"
mc_po_group: 501
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "201,202"
mc_po_group: 501
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "203,204"
mc_po_group: 502
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "203,204"
mc_po_group: 502
- link: "S1_Ethernet124 | S2_Ethernet124"
staticLink: true
properties:
mode: "MC-LAG"
- switchId: 2
switchName: "Spine-2"
ipAddress: "x.x.x.12"
ASN:
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "S1"
keepalive_vlan: 10
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "201,202"
mc_po_group: 501
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "201,202"
mc_po_group: 501
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "203,204"
mc_po_group: 502
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "203,204"
mc_po_group: 502
- link: "S2_Ethernet124 | S1_Ethernet124"
staticLink: true
properties:
mode: "MC-LAG"
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "x.x.x.13"
ASN:
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L2"
keepalive_vlan: 10
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "201,202"
mc_po_group: 501
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "201,202"
mc_po_group: 501
- link: "L1_Ethernet56 | L2_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- link: "L1_Ethernet4 | H2_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 2
switchName: "Leaf-2"
ipAddress: "x.x.x.14"
ASN:
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L1"
keepalive_vlan: 10
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "201,202"
mc_po_group: 501
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "201,202"
mc_po_group: 501
- link: "L2_Ethernet56 | L1_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L2_Ethernet0 | H1_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "x.x.x.15"
ASN:
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L4"
keepalive_vlan: 10
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "203,204"
mc_po_group: 502
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "203,204"
mc_po_group: 502
- link: "L3_Ethernet56 | L4_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- link: "L3_Ethernet4 | H4_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
- switchId: 4
switchName: "Leaf-4"
ipAddress: "x.x.x.16"
ASN:
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L3"
keepalive_vlan: 10
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "203,204"
mc_po_group: 502
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: "203,204"
mc_po_group: 502
- link: "L4_Ethernet56 | L3_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L4_Ethernet0 | H3_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
Tor: []
BGP:
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
IPv4Pool:
IPv6Pool:
NTP:
server: "x.x.x.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "x.x.x.10"
SNMP:
trapserver: "x.x.x.10"
Parameters:
vlan: "200,201,202,203,204,501,502"
anycast_gateway: "x.x.x.0/23"
hosts_per_vlan: 10
L2LS:
enabled: true
mode: "L2" # OverL2 and OverL3
Configure, Validate & Verify through UI
Applied Configuration on Switches
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-1
!
vlan 10
!
vlan 201
!
vlan 202
!
interface port-channel 201
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 201
!
interface port-channel 202
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 202
!
interface port-channel 501
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 201 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 202 mode active
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
channel-group 501 mode active
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
channel-group 501 mode active
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.2/31
!
mlag domain-id 1
peer-address 192.168.0.3
peer-link port-channel 999
src-address 192.168.0.2
member port-channel 201
member port-channel 202
member port-channel 501
local-interface vlan 10
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-2
!
vlan 10
!
vlan 201
!
vlan 202
!
interface port-channel 201
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 201
!
interface port-channel 202
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 202
!
interface port-channel 501
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 201 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 202 mode active
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
channel-group 501 mode active
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
channel-group 501 mode active
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.3/31
!
mlag domain-id 1
peer-address 192.168.0.2
peer-link port-channel 999
src-address 192.168.0.3
member port-channel 201
member port-channel 202
member port-channel 501
local-interface vlan 10
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-3
!
vlan 10
!
vlan 203
!
vlan 204
!
interface port-channel 203
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 203
!
interface port-channel 204
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 204
!
interface port-channel 502
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 203 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 204 mode active
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
channel-group 502 mode active
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
channel-group 502 mode active
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.4/31
!
mlag domain-id 1
peer-address 192.168.0.5
peer-link port-channel 999
src-address 192.168.0.4
member port-channel 203
member port-channel 204
member port-channel 502
local-interface vlan 10
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-4
!
vlan 10
!
vlan 203
!
vlan 204
!
interface port-channel 203
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 203
!
interface port-channel 204
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 204
!
interface port-channel 502
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 203 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 204 mode active
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
channel-group 502 mode active
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
channel-group 502 mode active
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.5/31
!
mlag domain-id 1
peer-address 192.168.0.4
peer-link port-channel 999
src-address 192.168.0.5
member port-channel 203
member port-channel 204
member port-channel 502
local-interface vlan 10
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Spine-1
!
vlan 10
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
interface port-channel 501
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
!
interface port-channel 502
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 501 mode active
forward-error-correction none
!
interface ethernet Ethernet12
no shutdown
mtu 9000
channel-group 502 mode active
forward-error-correction none
!
interface ethernet Ethernet124
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 501 mode active
forward-error-correction none
!
interface ethernet Ethernet8
no shutdown
mtu 9000
channel-group 502 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.0/31
!
mlag domain-id 1
peer-address 192.168.0.1
peer-link port-channel 999
src-address 192.168.0.0
member port-channel 501
member port-channel 502
local-interface vlan 10
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Spine-2
!
vlan 10
!
vlan 201
!
vlan 202
!
vlan 203
!
vlan 204
!
interface port-channel 501
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
!
interface port-channel 502
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface port-channel 999
mtu 9000
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk allowed vlan add 201
switchport trunk allowed vlan add 202
switchport trunk allowed vlan add 203
switchport trunk allowed vlan add 204
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 501 mode active
forward-error-correction none
!
interface ethernet Ethernet12
no shutdown
mtu 9000
channel-group 502 mode active
forward-error-correction none
!
interface ethernet Ethernet124
no shutdown
mtu 9000
channel-group 999 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 501 mode active
forward-error-correction none
!
interface ethernet Ethernet8
no shutdown
mtu 9000
channel-group 502 mode active
forward-error-correction none
!
interface vlan 10
ip address 192.168.0.1/31
!
mlag domain-id 1
peer-address 192.168.0.0
peer-link port-channel 999
src-address 192.168.0.1
member port-channel 501
member port-channel 502
local-interface vlan 10
