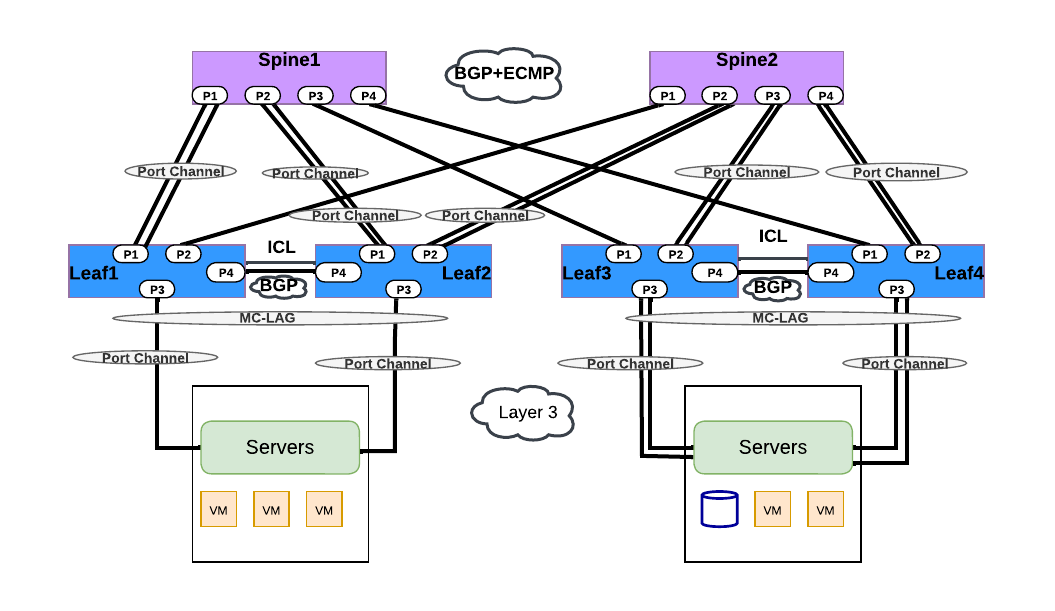

Layer 3 Fabric with BGP over Port channel
Network operators can execute a deployment using ONES validated design for port group channels offering link protection from a leaf switch to the hosted server . BGP over a port channel is a strategy employed for link protection. In this context, BGP is configured to operate over a port channel, allowing for enhanced reliability and redundancy in data communication. This approach helps protect against link failures by providing an alternate path for data transmission, contributing to increased network resilience and minimizing potential disruptions.
YAML Template
Inventory:
SSpines: 0
Spines: 0
Leafs: 6
Tors: 0
Connectivity:
SSpine: []
Spine: []
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "x.x.x.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
sflow:
enabled: true
agent: "Loopback3"
polling_interval: 20
Links:
- link: "L1_Ethernet48 | L5_Ethernet0"
staticLink: true
properties:
po_group: 11
sflow_sampling_rate: 1000
- link: "L1_Ethernet52 | L6_Ethernet0"
staticLink: true
properties:
po_group: 21
sflow_sampling_rate: 1000
- link: "L1_Ethernet56 | L2_Ethernet56"
staticLink: true
properties:
po_group: 33
sflow_sampling_rate: 10000
- link: "L1_Ethernet45 | L3_Ethernet45"
staticLink: true
properties:
po_group: 32
sflow_sampling_rate: 10000
- link: "L1_Ethernet46 | L4_Ethernet45"
staticLink: true
properties:
po_group: 31
sflow_sampling_rate: 10000
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Access"
vlan: 201
mc_po_group: 201
- link: "L1_Ethernet4 | H2_Ethernet0"
staticLink: true
properties:
mode: "L2-Access"
vlan: 202
mc_po_group: 202
- switchId: 2
switchName: "Leaf-2"
ipAddress: "x.x.x.14"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
sflow:
enabled: true
agent: "Loopback0"
polling_interval: 20
Links:
- link: "L2_Ethernet48 | L5_Ethernet4"
staticLink: true
properties:
po_group: 12
sflow_sampling_rate: "default"
- link: "L2_Ethernet52 | L6_Ethernet4"
staticLink: true
properties:
po_group: 22
sflow_sampling_rate: "default"
- link: "L2_Ethernet56 | L1_Ethernet56"
staticLink: true
properties:
po_group: 33
sflow_sampling_rate: "default"
- link: "L2_Ethernet45 | L3_Ethernet46"
staticLink: true
properties:
po_group: 34
sflow_sampling_rate: "default"
- link: "L2_Ethernet46 | L4_Ethernet46"
staticLink: true
properties:
po_group: 36
sflow_sampling_rate: "default"
- link: "L2_Ethernet0 | H1_Ethernet1"
staticLink: true
properties:
mode: "L2-Access"
vlan: 203
mc_po_group: 203
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Access"
vlan: 204
mc_po_group: 204
- switchId: 3
switchName: "Leaf-3"
ipAddress: "x.x.x.15"
ASN: 1003
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | L5_Ethernet8"
staticLink: true
properties:
po_group: 13
- link: "L3_Ethernet52 | L6_Ethernet8"
staticLink: true
properties:
po_group: 23
- link: "L3_Ethernet56 | L4_Ethernet56"
staticLink: true
properties:
po_group: 35
- link: "L3_Ethernet45 | L1_Ethernet45"
staticLink: true
properties:
po_group: 32
- link: "L3_Ethernet46 | L2_Ethernet45"
staticLink: true
properties:
po_group: 34
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Access"
vlan: 205
mc_po_group: 205
- link: "L3_Ethernet4 | H4_Ethernet0"
staticLink: true
properties:
mode: "L2-Access"
vlan: 206
mc_po_group: 206
- switchId: 4
switchName: "Leaf-4"
ipAddress: "x.x.x.16"
ASN: 1004
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | L5_Ethernet12"
staticLink: true
properties:
po_group: 14
- link: "L4_Ethernet52 | L6_Ethernet12"
staticLink: true
properties:
po_group: 24
- link: "L4_Ethernet56 | L3_Ethernet56"
staticLink: true
properties:
po_group: 35
- link: "L4_Ethernet45 | L1_Ethernet46"
staticLink: true
properties:
po_group: 31
- link: "L4_Ethernet46 | L2_Ethernet46"
staticLink: true
properties:
po_group: 36
- link: "L4_Ethernet0 | H3_Ethernet1"
staticLink: true
properties:
mode: "L2-Access"
vlan: 207
mc_po_group: 207
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Access"
vlan: 208
mc_po_group: 208
- switchId: 5
switchName: "Leaf-5-Spine-1"
ipAddress: "x.x.x.11"
ASN: 1005
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L5_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
po_group: 11
- link: "L5_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
po_group: 12
- link: "L5_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
po_group: 13
- link: "L5_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
po_group: 14
- link: "L5_Ethernet124 | L6_Ethernet124"
staticLink: true
properties:
po_group: 15
- switchId: 6
switchName: "Leaf-6-Spine-2"
ipAddress: "x.x.x.12"
ASN: 1006
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L6_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
po_group: 21
- link: "L6_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
po_group: 22
- link: "L6_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
po_group: 23
- link: "L6_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
po_group: 24
- link: "L6_Ethernet124 | L5_Ethernet124"
staticLink: true
properties:
po_group: 15
Tor: []
BGP:
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
NTP:
server: "x.x.x.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "x.x.x.10"
SNMP:
trapserver: "x.x.x.10"
Parameters:
vlan: "201,202,203,204,205,206,207,208"
anycast_gateway: "x.x.x.0/23"
hosts_per_vlan: 10
L2LS:
enabled: false
mode: "L2" # OverL2 and OverL3
Sflow:
collectors:
- id: 1
ip: "x.x.x.10"
port: 6343

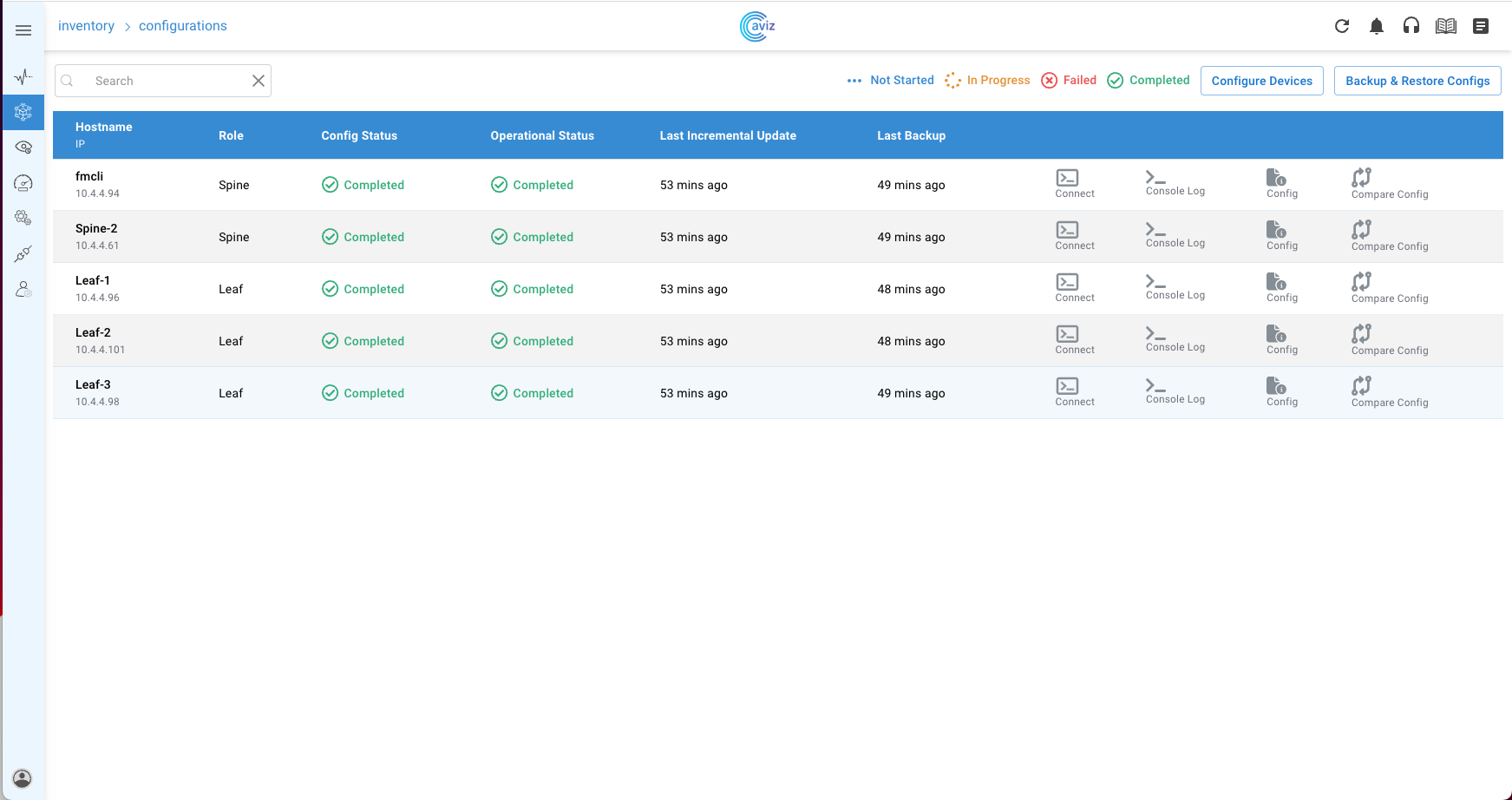

Configure, Validate & Verify through UI
Show running config on switch
router-id 10.10.10.0
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.0
!
vlan 201
!
vlan 202
!
interface port-channel 11
mtu 9000
ip address 40.0.0.0/31
!
interface port-channel 201
mtu 9000
switchport access vlan 201
!
interface port-channel 202
mtu 9000
switchport access vlan 202
!
interface port-channel 21
mtu 9000
ip address 40.0.0.2/31
!
interface port-channel 31
mtu 9000
ip address 40.0.0.8/31
!
interface port-channel 32
mtu 9000
ip address 40.0.0.6/31
!
interface port-channel 33
mtu 9000
ip address 40.0.0.4/31
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 201 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 202 mode active
forward-error-correction none
!
interface ethernet Ethernet45
no shutdown
mtu 9000
channel-group 32 mode active
sflow enable
sflow sampling-rate 10000
forward-error-correction none
!
interface ethernet Ethernet46
no shutdown
mtu 9000
channel-group 31 mode active
sflow enable
sflow sampling-rate 10000
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
channel-group 11 mode active
sflow enable
sflow sampling-rate 1000
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
channel-group 21 mode active
sflow enable
sflow sampling-rate 1000
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 33 mode active
sflow enable
sflow sampling-rate 10000
forward-error-correction none
!
interface vlan 201
ip address x.x.x.1/26
!
interface vlan 202
ip address x.x.x.65/26
!
interface loopback 1
ip address 10.10.10.0/32
!
interface loopback 3
ip address 10.10.10.2/32
!
feature sflow
sflow collector collector1 x.x.x.10 port 6343
sflow agent-id add interface Loopback3
sflow polling-interval 20
!
router bgp 1001
neighbor 40.0.0.1 remote-as 1005
neighbor 40.0.0.3 remote-as 1006
neighbor 40.0.0.5 remote-as 1002
neighbor 40.0.0.7 remote-as 1003
neighbor 40.0.0.9 remote-as 1004
neighbor 40.0.0.1 capability extended-nexthop
neighbor 40.0.0.3 capability extended-nexthop
neighbor 40.0.0.5 capability extended-nexthop
neighbor 40.0.0.7 capability extended-nexthop
neighbor 40.0.0.9 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.1 allowas-in 1
neighbor 40.0.0.3 allowas-in 1
neighbor 40.0.0.5 allowas-in 1
neighbor 40.0.0.7 allowas-in 1
neighbor 40.0.0.9 allowas-in 1
network 40.0.0.0/31
network 40.0.0.2/31
network 40.0.0.4/31
network 40.0.0.6/31
network 40.0.0.8/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
router-id 10.10.10.3
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.3
!
vlan 203
!
vlan 204
!
interface port-channel 12
mtu 9000
ip address 40.0.0.10/31
!
interface port-channel 203
mtu 9000
switchport access vlan 203
!
interface port-channel 204
mtu 9000
switchport access vlan 204
!
interface port-channel 22
mtu 9000
ip address 40.0.0.12/31
!
interface port-channel 33
mtu 9000
ip address 40.0.0.5/31
!
interface port-channel 34
mtu 9000
ip address 40.0.0.14/31
!
interface port-channel 36
mtu 9000
ip address 40.0.0.16/31
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 203 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 204 mode active
forward-error-correction none
!
interface ethernet Ethernet45
no shutdown
mtu 9000
channel-group 34 mode active
sflow enable
forward-error-correction none
!
interface ethernet Ethernet46
no shutdown
mtu 9000
channel-group 36 mode active
sflow enable
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
channel-group 12 mode active
sflow enable
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
channel-group 22 mode active
sflow enable
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 33 mode active
sflow enable
forward-error-correction none
!
interface vlan 203
ip address x.x.x.129/26
!
interface vlan 204
ip address x.x.x.193/26
!
interface loopback 0
ip address 10.10.10.5/32
!
interface loopback 1
ip address 10.10.10.3/32
!
feature sflow
sflow collector collector1 x.x.x.10 port 6343
sflow agent-id add interface Loopback0
sflow polling-interval 20
!
router bgp 1002
neighbor 40.0.0.11 remote-as 1005
neighbor 40.0.0.13 remote-as 1006
neighbor 40.0.0.15 remote-as 1003
neighbor 40.0.0.17 remote-as 1004
neighbor 40.0.0.4 remote-as 1001
neighbor 40.0.0.11 capability extended-nexthop
neighbor 40.0.0.13 capability extended-nexthop
neighbor 40.0.0.15 capability extended-nexthop
neighbor 40.0.0.17 capability extended-nexthop
neighbor 40.0.0.4 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.11 allowas-in 1
neighbor 40.0.0.13 allowas-in 1
neighbor 40.0.0.15 allowas-in 1
neighbor 40.0.0.17 allowas-in 1
neighbor 40.0.0.4 allowas-in 1
network 40.0.0.10/31
network 40.0.0.12/31
network 40.0.0.14/31
network 40.0.0.16/31
network 40.0.0.4/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
router-id 10.10.10.6
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-3
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.6
!
vlan 205
!
vlan 206
!
interface port-channel 13
mtu 9000
ip address 40.0.0.18/31
!
interface port-channel 205
mtu 9000
switchport access vlan 205
!
interface port-channel 206
mtu 9000
switchport access vlan 206
!
interface port-channel 23
mtu 9000
ip address 40.0.0.20/31
!
interface port-channel 32
mtu 9000
ip address 40.0.0.7/31
!
interface port-channel 34
mtu 9000
ip address 40.0.0.15/31
!
interface port-channel 35
mtu 9000
ip address 40.0.0.22/31
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 205 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 206 mode active
forward-error-correction none
!
interface ethernet Ethernet45
no shutdown
mtu 9000
channel-group 32 mode active
forward-error-correction none
!
interface ethernet Ethernet46
no shutdown
mtu 9000
channel-group 34 mode active
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
channel-group 13 mode active
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
channel-group 23 mode active
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 35 mode active
forward-error-correction none
!
interface vlan 205
ip address 100.10.1.1/26
!
interface vlan 206
ip address 100.10.1.65/26
!
interface loopback 1
ip address 10.10.10.6/32
!
router bgp 1003
neighbor 40.0.0.14 remote-as 1002
neighbor 40.0.0.19 remote-as 1005
neighbor 40.0.0.21 remote-as 1006
neighbor 40.0.0.23 remote-as 1004
neighbor 40.0.0.6 remote-as 1001
neighbor 40.0.0.14 capability extended-nexthop
neighbor 40.0.0.19 capability extended-nexthop
neighbor 40.0.0.21 capability extended-nexthop
neighbor 40.0.0.23 capability extended-nexthop
neighbor 40.0.0.6 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.14 allowas-in 1
neighbor 40.0.0.19 allowas-in 1
neighbor 40.0.0.21 allowas-in 1
neighbor 40.0.0.23 allowas-in 1
neighbor 40.0.0.6 allowas-in 1
network 40.0.0.14/31
network 40.0.0.18/31
network 40.0.0.20/31
network 40.0.0.22/31
network 40.0.0.6/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
router-id 10.10.10.8
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-4
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.8
!
vlan 207
!
vlan 208
!
interface port-channel 14
mtu 9000
ip address 40.0.0.24/31
!
interface port-channel 207
mtu 9000
switchport access vlan 207
!
interface port-channel 208
mtu 9000
switchport access vlan 208
!
interface port-channel 24
mtu 9000
ip address 40.0.0.26/31
!
interface port-channel 31
mtu 9000
ip address 40.0.0.9/31
!
interface port-channel 35
mtu 9000
ip address 40.0.0.23/31
!
interface port-channel 36
mtu 9000
ip address 40.0.0.17/31
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 207 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 208 mode active
forward-error-correction none
!
interface ethernet Ethernet45
no shutdown
mtu 9000
channel-group 31 mode active
forward-error-correction none
!
interface ethernet Ethernet46
no shutdown
mtu 9000
channel-group 36 mode active
forward-error-correction none
!
interface ethernet Ethernet48
no shutdown
mtu 9000
channel-group 14 mode active
forward-error-correction none
!
interface ethernet Ethernet52
no shutdown
mtu 9000
channel-group 24 mode active
forward-error-correction none
!
interface ethernet Ethernet56
no shutdown
mtu 9000
channel-group 35 mode active
forward-error-correction none
!
interface vlan 207
ip address 100.10.1.129/26
!
interface vlan 208
ip address 100.10.1.193/26
!
interface loopback 1
ip address 10.10.10.8/32
!
router bgp 1004
neighbor 40.0.0.16 remote-as 1002
neighbor 40.0.0.22 remote-as 1003
neighbor 40.0.0.25 remote-as 1005
neighbor 40.0.0.27 remote-as 1006
neighbor 40.0.0.8 remote-as 1001
neighbor 40.0.0.16 capability extended-nexthop
neighbor 40.0.0.22 capability extended-nexthop
neighbor 40.0.0.25 capability extended-nexthop
neighbor 40.0.0.27 capability extended-nexthop
neighbor 40.0.0.8 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.16 allowas-in 1
neighbor 40.0.0.22 allowas-in 1
neighbor 40.0.0.25 allowas-in 1
neighbor 40.0.0.27 allowas-in 1
neighbor 40.0.0.8 allowas-in 1
network 40.0.0.16/31
network 40.0.0.22/31
network 40.0.0.24/31
network 40.0.0.26/31
network 40.0.0.8/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
router-id 10.10.10.10
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-5-Spine-1
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.10
!
interface port-channel 11
mtu 9000
ip address 40.0.0.1/31
!
interface port-channel 12
mtu 9000
ip address 40.0.0.11/31
!
interface port-channel 13
mtu 9000
ip address 40.0.0.19/31
!
interface port-channel 14
mtu 9000
ip address 40.0.0.25/31
!
interface port-channel 15
mtu 9000
ip address 40.0.0.28/31
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 11 mode active
forward-error-correction none
!
interface ethernet Ethernet12
no shutdown
mtu 9000
channel-group 14 mode active
forward-error-correction none
!
interface ethernet Ethernet124
no shutdown
mtu 9000
channel-group 15 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 12 mode active
forward-error-correction none
!
interface ethernet Ethernet8
no shutdown
mtu 9000
channel-group 13 mode active
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.10/32
!
router bgp 1005
neighbor 40.0.0.0 remote-as 1001
neighbor 40.0.0.10 remote-as 1002
neighbor 40.0.0.18 remote-as 1003
neighbor 40.0.0.24 remote-as 1004
neighbor 40.0.0.29 remote-as 1006
neighbor 40.0.0.0 capability extended-nexthop
neighbor 40.0.0.10 capability extended-nexthop
neighbor 40.0.0.18 capability extended-nexthop
neighbor 40.0.0.24 capability extended-nexthop
neighbor 40.0.0.29 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.0 allowas-in 1
neighbor 40.0.0.10 allowas-in 1
neighbor 40.0.0.18 allowas-in 1
neighbor 40.0.0.24 allowas-in 1
neighbor 40.0.0.29 allowas-in 1
network 40.0.0.0/31
network 40.0.0.10/31
network 40.0.0.18/31
network 40.0.0.24/31
network 40.0.0.28/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
router-id 10.10.10.12
ntp add x.x.x.10
clock timezone Asia/Kolkata
syslog add x.x.x.10
snmp-server trap modify 2 x.x.x.10 port 161 vrf None community Public
hostname Leaf-6-Spine-2
ip protocol bgp route-map RM_SET_SRC
!
route-map FMCLI_IPV6_NH_GLOBAL permit 1
on-match next
set ipv6 next-hop prefer-global
!
route-map RM_SET_SRC permit 10
set src 10.10.10.12
!
interface port-channel 15
mtu 9000
ip address 40.0.0.29/31
!
interface port-channel 21
mtu 9000
ip address 40.0.0.3/31
!
interface port-channel 22
mtu 9000
ip address 40.0.0.13/31
!
interface port-channel 23
mtu 9000
ip address 40.0.0.21/31
!
interface port-channel 24
mtu 9000
ip address 40.0.0.27/31
!
interface ethernet Ethernet0
no shutdown
mtu 9000
channel-group 21 mode active
forward-error-correction none
!
interface ethernet Ethernet12
no shutdown
mtu 9000
channel-group 24 mode active
forward-error-correction none
!
interface ethernet Ethernet124
no shutdown
mtu 9000
channel-group 15 mode active
forward-error-correction none
!
interface ethernet Ethernet4
no shutdown
mtu 9000
channel-group 22 mode active
forward-error-correction none
!
interface ethernet Ethernet8
no shutdown
mtu 9000
channel-group 23 mode active
forward-error-correction none
!
interface loopback 1
ip address 10.10.10.12/32
!
router bgp 1006
neighbor 40.0.0.12 remote-as 1002
neighbor 40.0.0.2 remote-as 1001
neighbor 40.0.0.20 remote-as 1003
neighbor 40.0.0.26 remote-as 1004
neighbor 40.0.0.28 remote-as 1005
neighbor 40.0.0.12 capability extended-nexthop
neighbor 40.0.0.2 capability extended-nexthop
neighbor 40.0.0.20 capability extended-nexthop
neighbor 40.0.0.26 capability extended-nexthop
neighbor 40.0.0.28 capability extended-nexthop
bgp bestpath as-path multipath-relax
no bgp ebgp-requires-policy
address-family ipv4 unicast
neighbor 40.0.0.12 allowas-in 1
neighbor 40.0.0.2 allowas-in 1
neighbor 40.0.0.20 allowas-in 1
neighbor 40.0.0.26 allowas-in 1
neighbor 40.0.0.28 allowas-in 1
network 40.0.0.12/31
network 40.0.0.2/31
network 40.0.0.20/31
network 40.0.0.26/31
network 40.0.0.28/31
redistribute connected
redistribute static
!
address-family ipv6 unicast
redistribute connected
redistribute static
